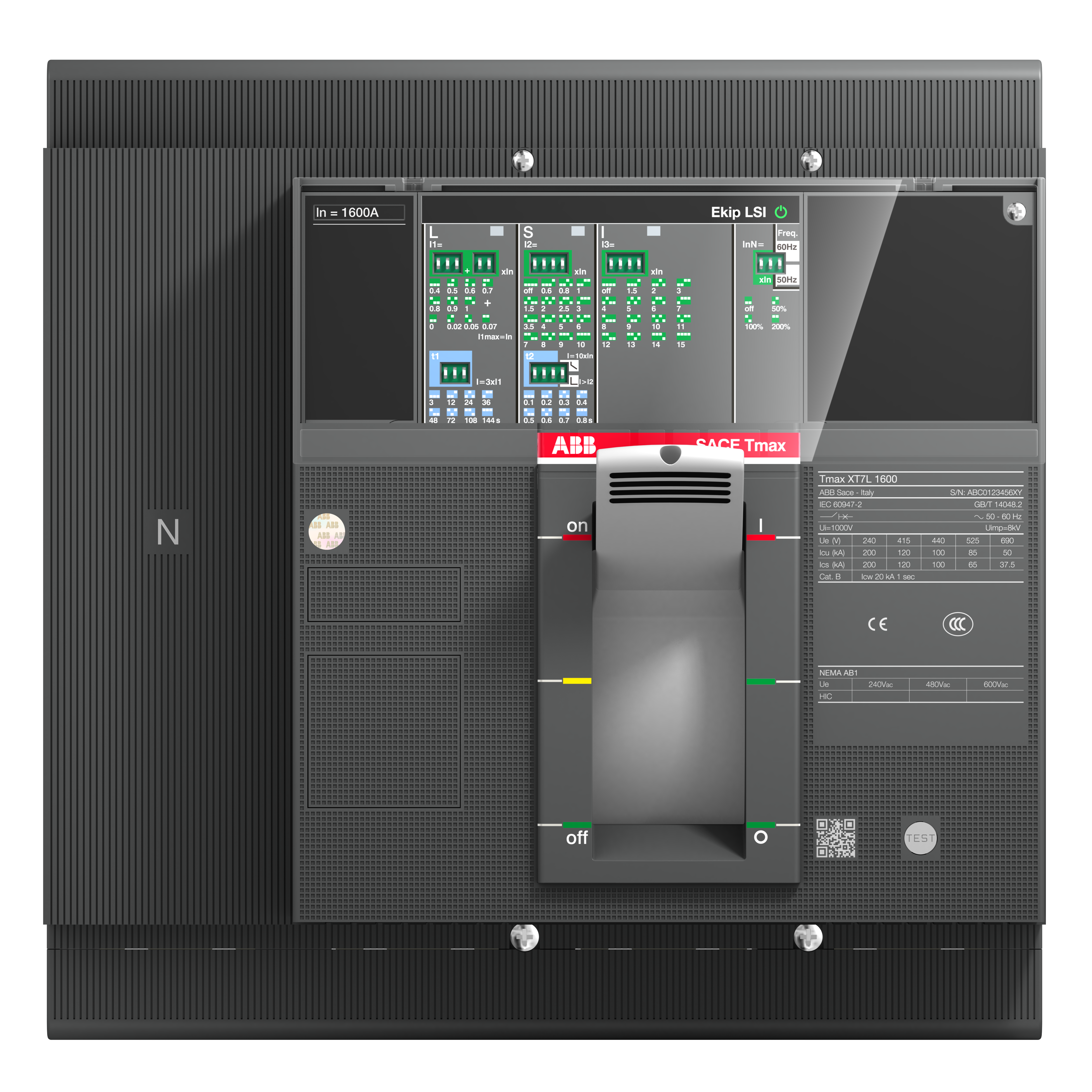

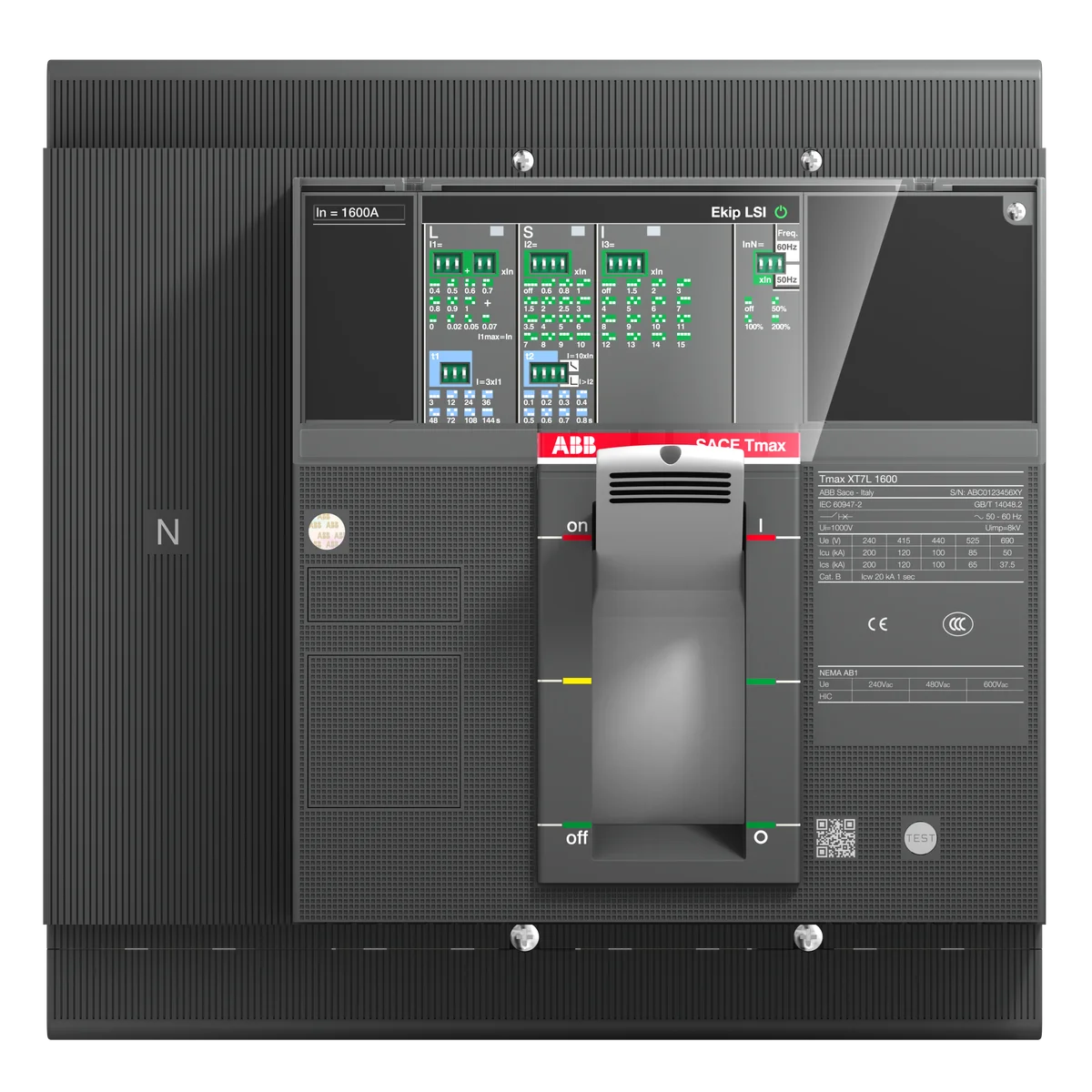

ABB 1SDA101173R1 XT7H 1600 Ekip Dip LS/I In=1600A 4p F F Moulded Case Circuit Breaker

The ABB XT7H 1600 Ekip Dip LS/I In=1600A 4p F F (SKU: 1SDA101173R1) is a high-performance 4-pole fixed-mount power circuit-breaker rated at 1600 A with a breaking capacity of 100 kA at 220 V AC. Belonging to ABB's Tmax XT7 series, this unit is purpose-built for transformer, generator, and installation protection in demanding industrial and commercial power distribution applications. Its Ekip Dip LS/I electronic trip unit delivers precise long-time and instantaneous protection, making it an ideal choice for engineers specifying reliable overcurrent and short-circuit protection in critical electrical panels.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Community safety, health, and environmental requirements
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• EU Amendment 2015/863: Updated RoHS substance restrictions fully met
• REACH: Compliant with EU REACH regulation on chemical substances
• IEC 60947-2: Meets international standard for low-voltage switchgear — circuit-breakers
• WEEE: Registered under EU Waste Electrical and Electronic Equipment directive for responsible disposal

Applications & Use Cases

• Transformer feeder and secondary protection in MV/LV substations
• Generator protection and bus coupler applications
• Main and sub-main distribution boards in industrial plants
• Installation protection in large commercial and infrastructure projects
• Control panel integration where high breaking capacity and electronic trip precision are required
