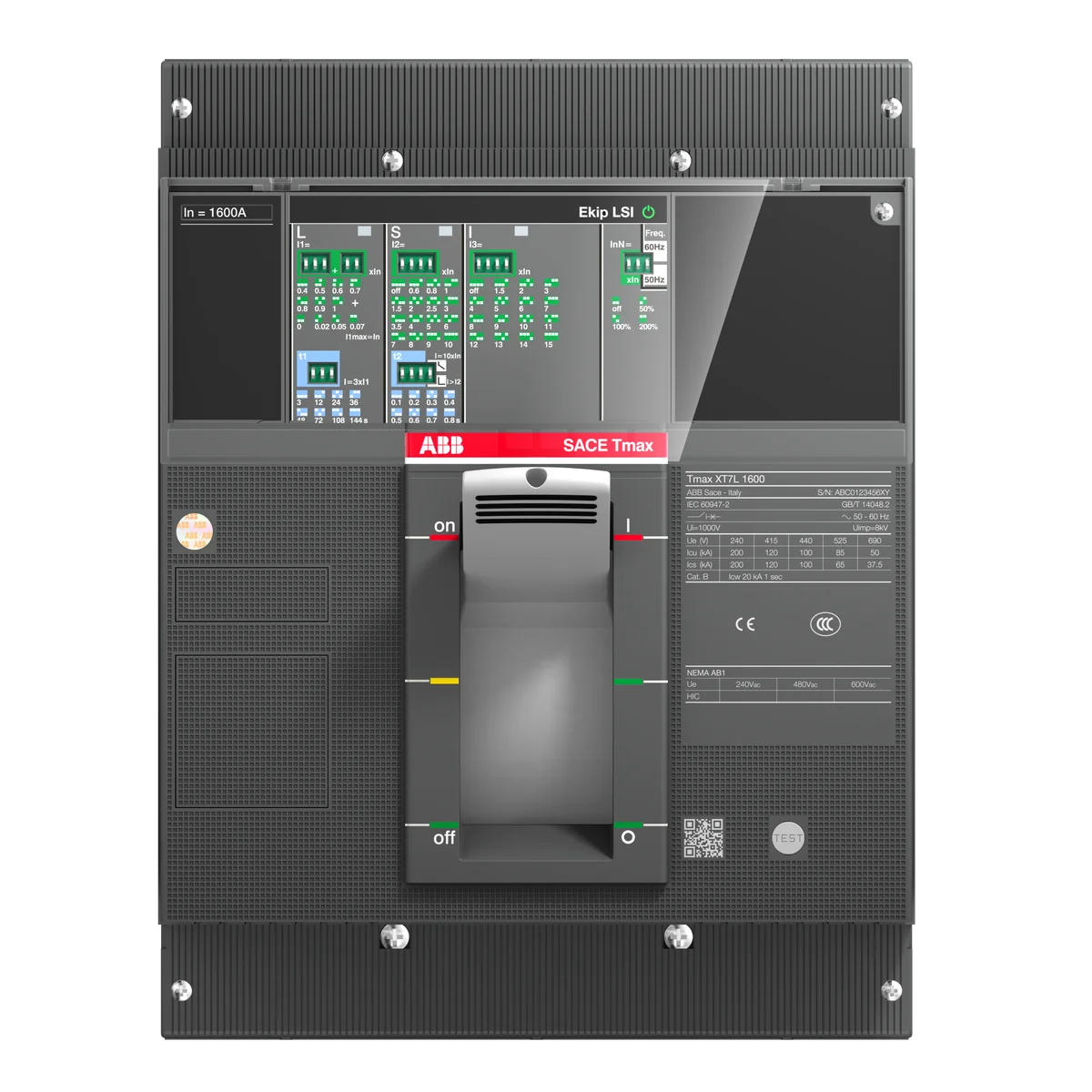

ABB 1SDA100829R1 XT7S 1600 Ekip Dip LS/I In=1600A 3p F F Moulded Case Circuit Breaker

The ABB 1SDA100829R1 XT7S 1600 Ekip Dip LS/I In=1600A 3p F F is a high-performance 3-pole fixed power circuit-breaker rated at 1600 A, designed for transformer, generator, and installation protection in demanding industrial environments. Part of ABB's Tmax XT7S series, this breaker delivers a breaking capacity of 85 kA at 220 V AC, combining robust overcurrent protection via the Ekip Dip LS/I electronic trip unit with a compact fixed-mounting design suitable for switchgear panels and power distribution boards.

Technical Specifications

Certifications & Standards

• CE: Complies with applicable European Community directives for electrical equipment
• RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
• REACH: Complies with EU REACH regulation on chemical substance safety
• EU Directive 2011/65/EU: RoHS 2 directive compliance for hazardous substance restriction
• Amendment 2015/863: RoHS 3 amendment extending restricted substances list
• IEC 60947-2: International standard for low-voltage switchgear — circuit-breakers
• WEEE: Waste Electrical and Electronic Equipment directive compliance for end-of-life recycling

Applications & Use Cases

• Transformer and generator feeder protection in MV/LV substations
• Main incomer protection in industrial power distribution boards
• Installation protection for large commercial and industrial facilities
• Switchgear panels requiring high breaking capacity up to 85 kA
• Fixed-mounted power circuit-breaker applications demanding IEC 60947-2 conformity
