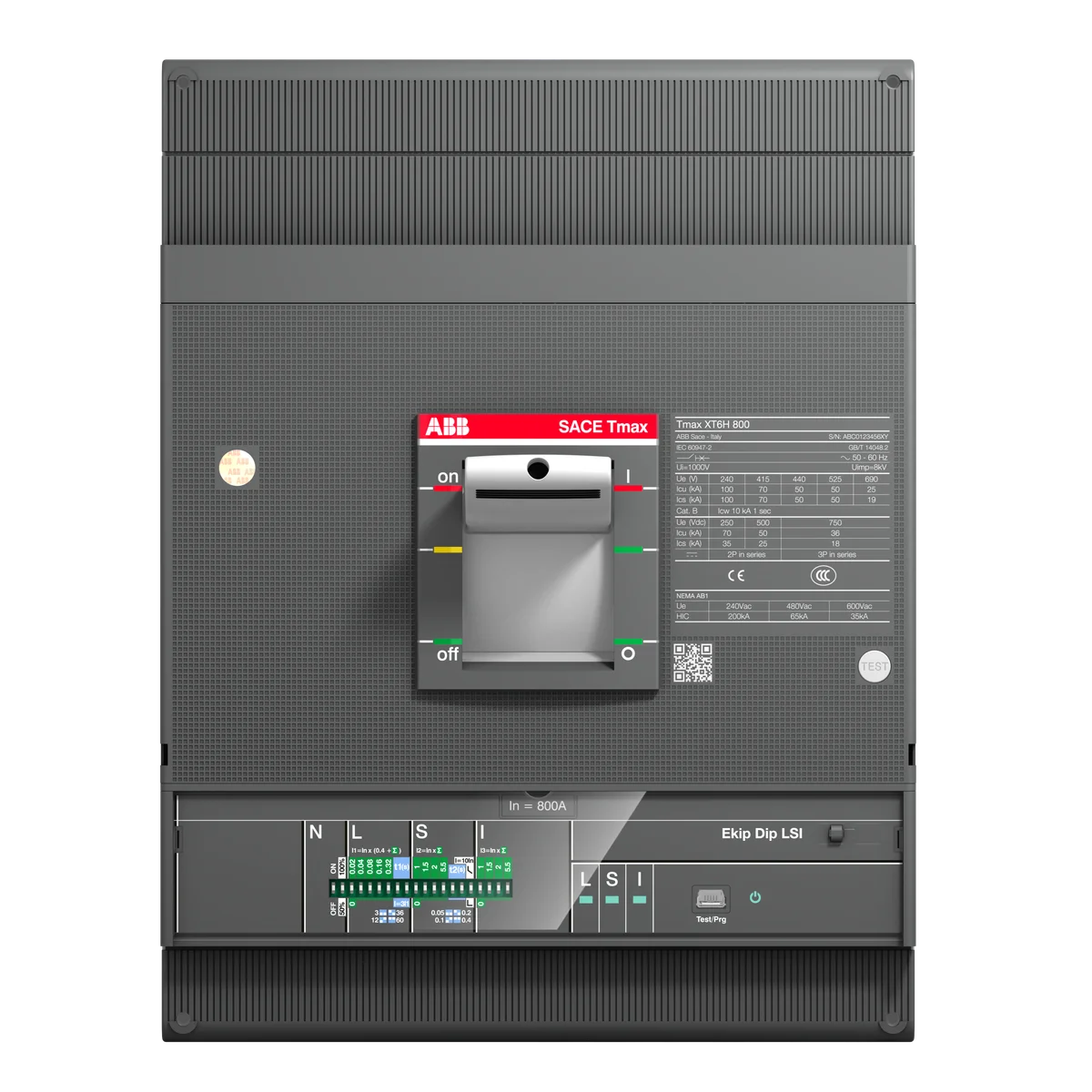

ABB 1SDA100747R1 XT6S 800 Ekip M Dip I In=800A 3p F F 3-Pole 800A Fixed Moulded Case Circuit Breaker

The ABB 1SDA100747R1 XT6S 800 Ekip M Dip I In=800A 3p F F is a high-performance, 3-pole fixed-mount power circuit-breaker from the Tmax XT6 series, rated at 800A with a breaking capacity of 85 kA at 220V AC. Designed for the protection of transformers, generators, and electrical installations, the XT6S 800 Ekip M Dip I In=800A 3p F F delivers reliable overcurrent protection in demanding industrial and commercial power distribution applications.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU: Restriction of hazardous substances in electrical and electronic equipment
• Amendment 2015/863: Updated RoHS substance restrictions per EU Amendment 2015/863
• IEC 60947-2: Complies with international standard for low-voltage circuit-breakers
• CE: Carries CE marking for conformity with applicable EU directives
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

• Transformer protection in industrial power distribution panels
• Generator protection for standby and prime power systems
• Main and feeder protection in low-voltage switchgear assemblies
• Installation protection in large commercial and industrial facilities
• Motor circuit and busbar protection in control panels
