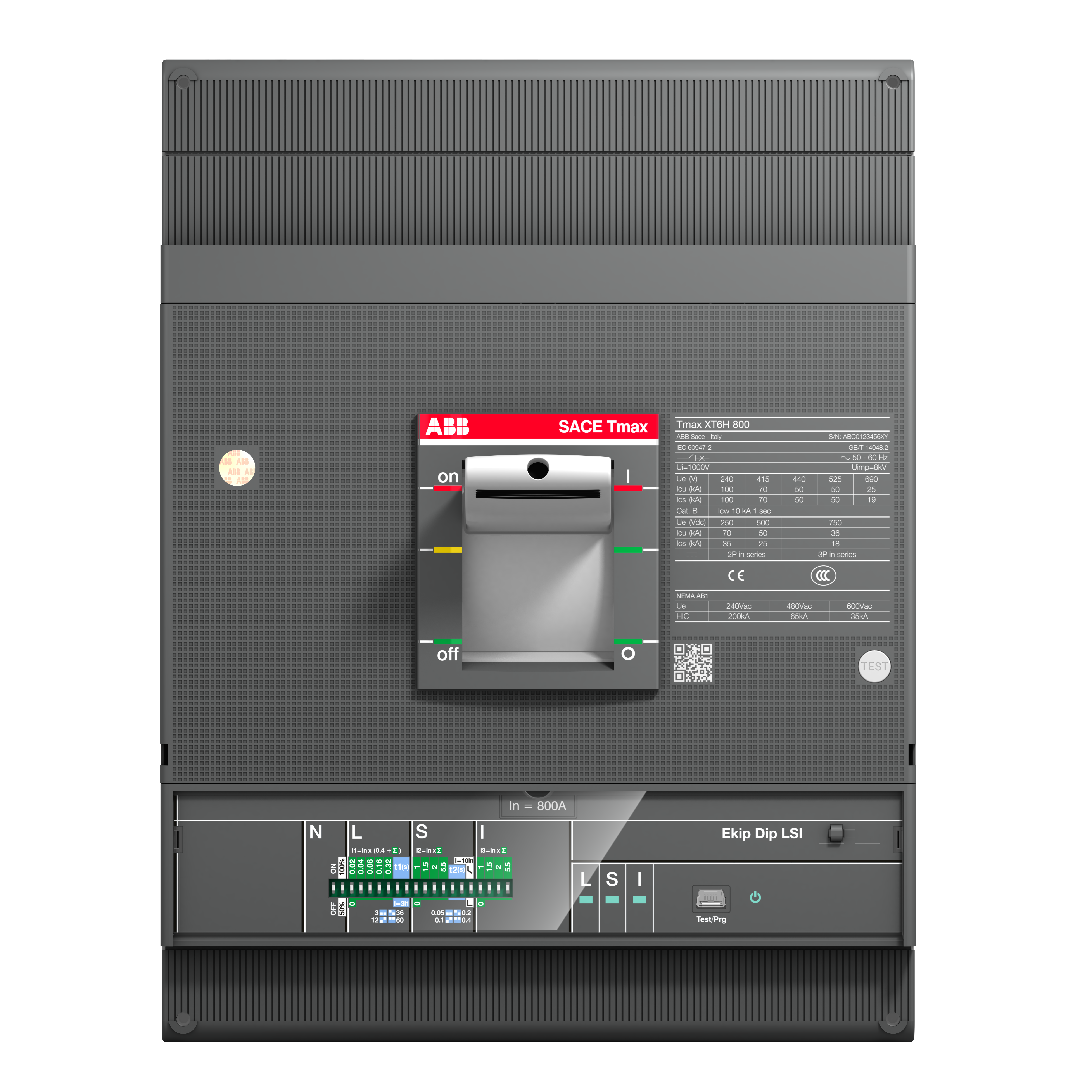

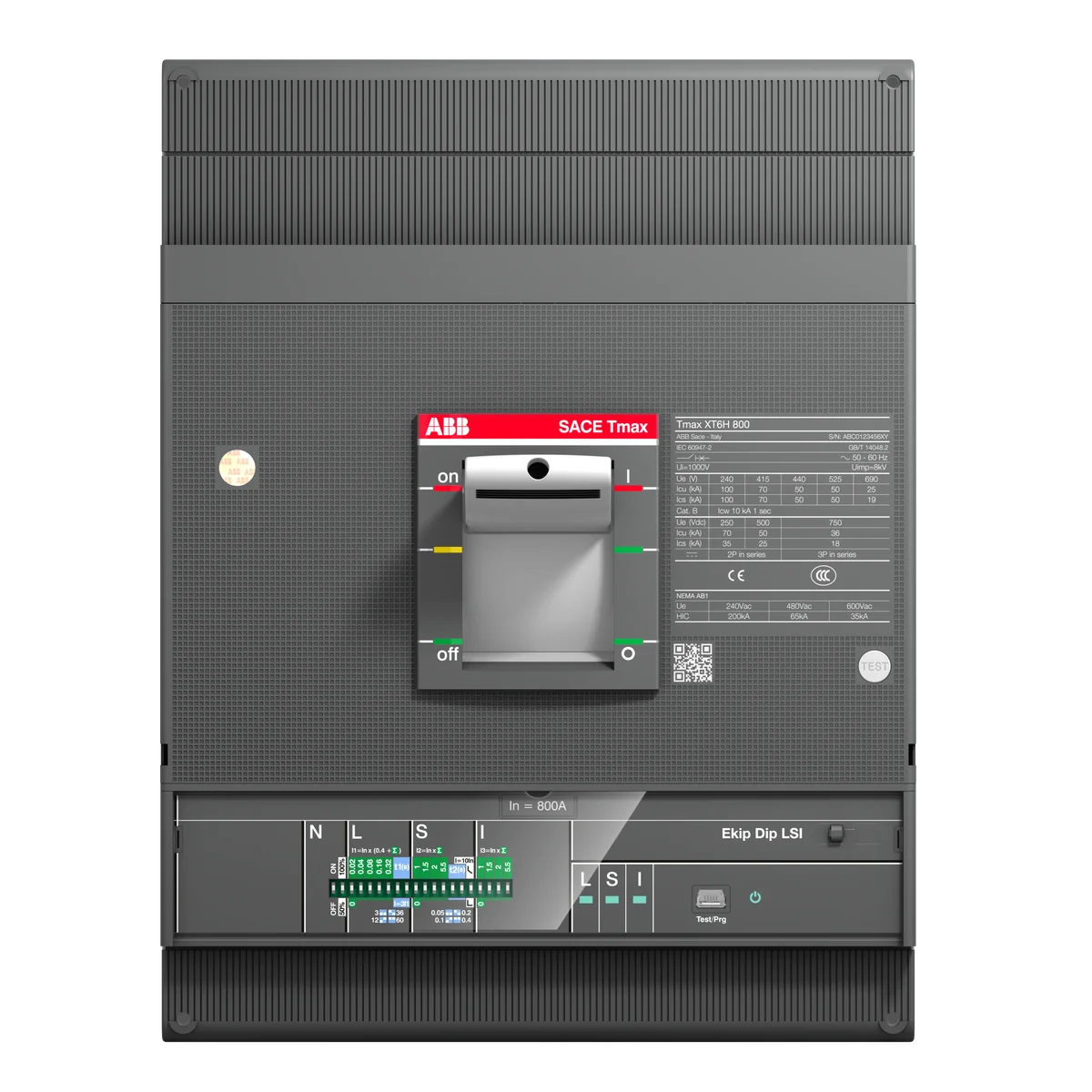

ABB 1SDA100742R1 XT6S 1000 Ekip Dip LS/I In=1000 3p F F 1000A 3-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100742R1 XT6S 1000 Ekip Dip LS/I In=1000 3p F F is a 1000 A, 3-pole fixed-mounted power circuit-breaker from the Tmax XT6 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring the Ekip Dip LS/I electronic trip unit with long-time and instantaneous protection functions, the XT6S 1000 Ekip Dip LS/I In=1000 3p F F delivers a breaking capacity of 85 kA at 220 V AC, making it suitable for high-fault-level switchgear assemblies.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Compliant with the international standard for low-voltage circuit-breakers
• CE: Meets European Union safety, health, and environmental protection requirements
• RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
• REACH: Compliant with EU regulation on chemical substance registration and restriction
• EU Directive 2011/65/EU: RoHS2 directive compliance verified
• EU Directive 2015/863: RoHS3 amendment compliance verified
• WEEE: Waste Electrical and Electronic Equipment Directive — proper end-of-life disposal designated

Applications & Use Cases

• Transformer feeder and secondary protection in industrial MV/LV substations
• Generator circuit-breaker and protection in standby and prime power installations
• Main incomer protection in large switchgear panels and motor control centres
• High-fault-level industrial distribution boards requiring 85 kA breaking capacity
• Fixed-mount installations in power distribution and building management systems
