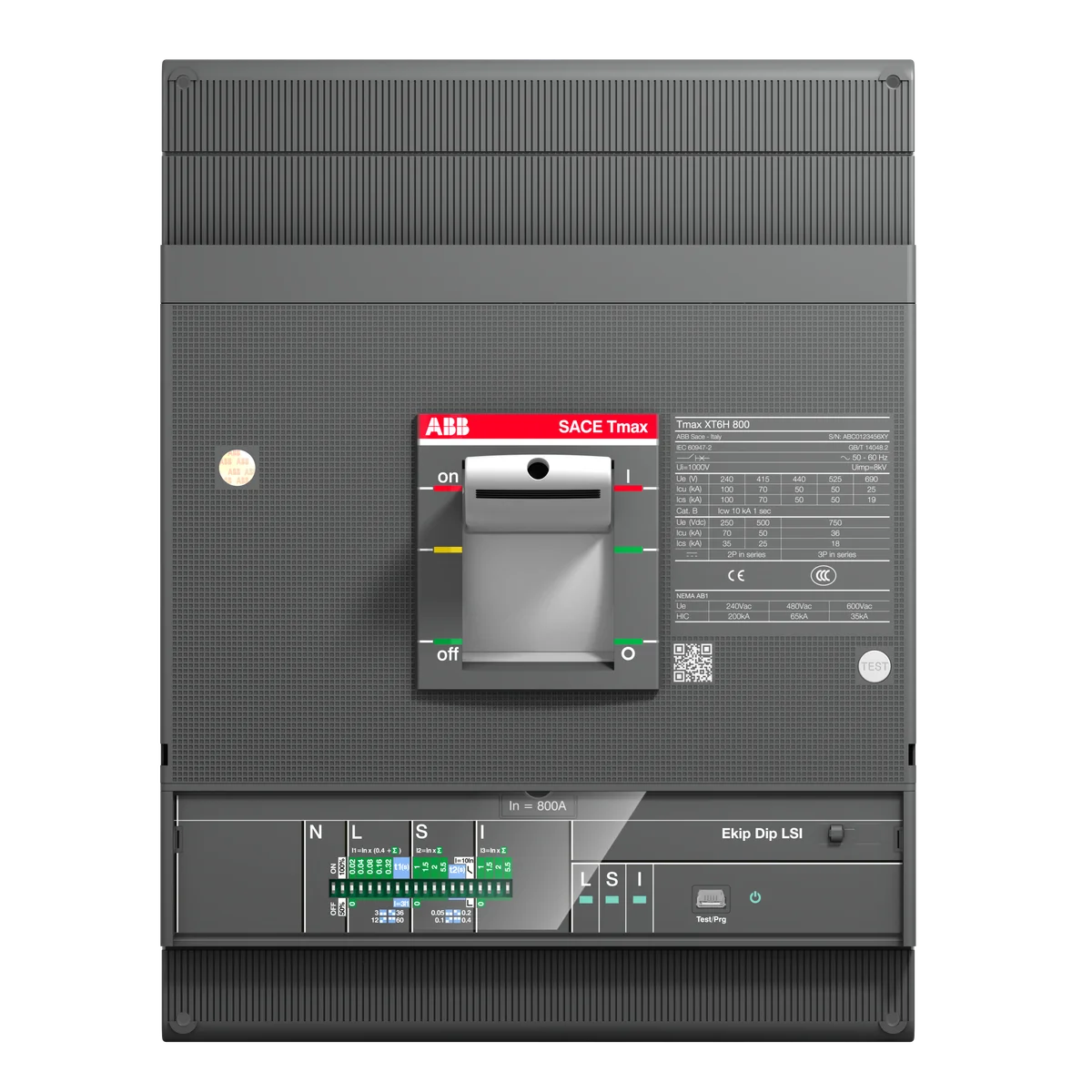

ABB 1SDA100719R1 XT6N 800 Ekip Dip LS/I In=800 3p F F 800A 3-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100719R1 — catalog number XT6N 800 Ekip Dip LS/I In=800 3p F F — is an 800A, 3-pole fixed-mount moulded case circuit breaker from the ABB Tmax XT6 series, engineered for robust overcurrent and short-circuit protection in demanding industrial power distribution applications. Featuring the Ekip Dip LS/I electronic trip unit with a rated current of 800A, this circuit breaker delivers a breaking capacity of 70 kA at 220 V AC, making it well-suited for high-fault-level installations in industrial plants, commercial buildings, and critical infrastructure.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Compliant with the international standard for low-voltage switchgear and controlgear — circuit breakers
• CE: Conforms to applicable European Union directives for safety, health, and environmental protection
• RoHS: Restriction of Hazardous Substances — free from regulated hazardous materials in electrical and electronic equipment
• REACH: Compliant with EU REACH regulation concerning the registration, evaluation, authorisation, and restriction of chemicals

Applications & Use Cases

• Industrial power distribution panels and motor control centres requiring 800A overcurrent protection
• Commercial and institutional buildings with high-fault-level main or sub-main circuit protection
• Critical infrastructure installations demanding reliable short-circuit interruption up to 70 kA at 220 V AC
• Fixed-mount switchboard assemblies in manufacturing, energy, and process industries
• OEM control panel builders specifying IEC 60947-2-compliant moulded case circuit breakers
