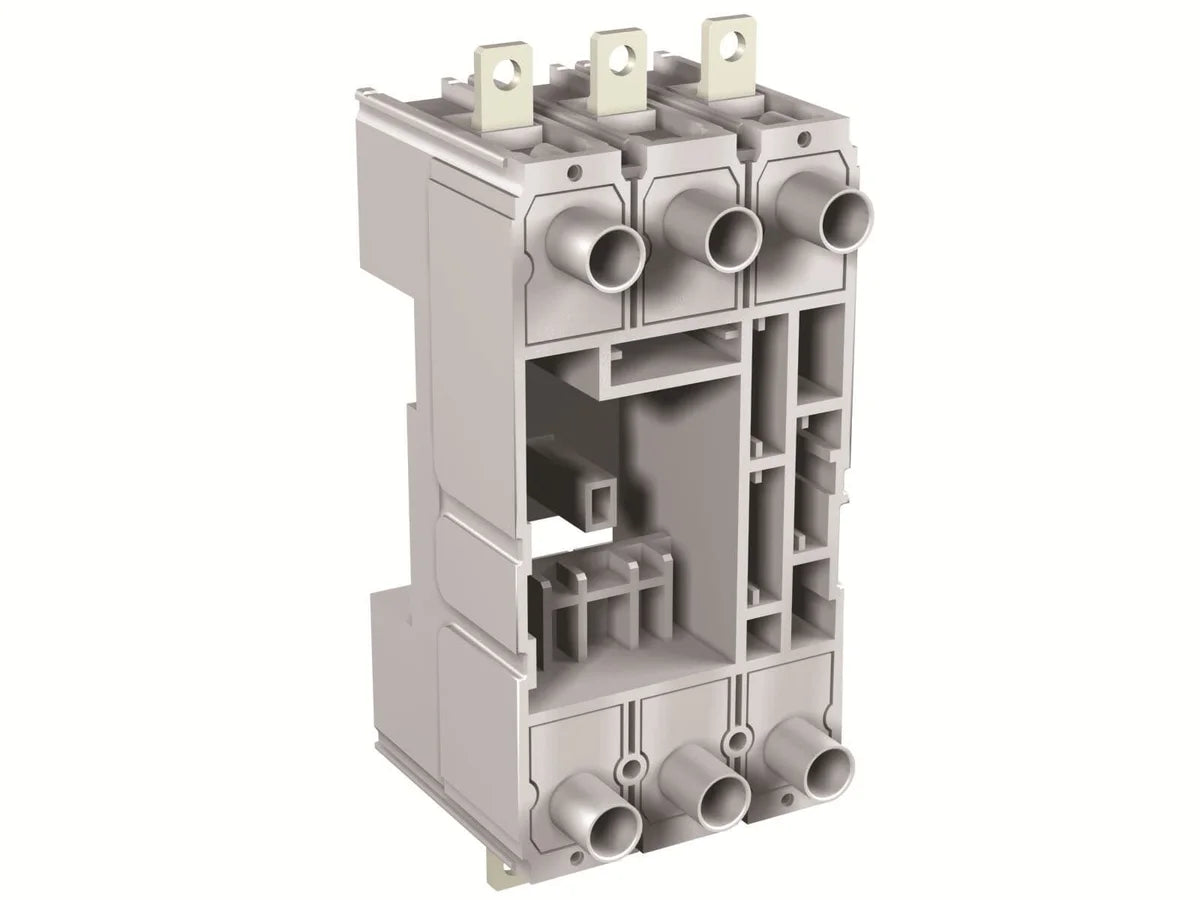

ABB 1SDA068196R1 XT4 P FP 3p EF 3-Pole Plug-In Fixed Part Chassis Part Moulded Case Circuit Breaker Tmax XT4

The ABB 1SDA068196R1 XT4 P FP 3p EF is a 3-pole plug-in fixed part chassis component designed for the Tmax XT4 series power circuit breaker, enabling secure plug-in mounting within compatible switchgear assemblies. This precision-engineered chassis part ensures reliable electrical connectivity and mechanical integrity in industrial control panels and distribution boards. Weighing 1.19 kg, it is built to ABB's rigorous quality standards for demanding industrial environments.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical safety regulation
• IEC 60947-2 / UL489: Meets international and North American standards for circuit breakers
• IEC 60947: Compliant with IEC low-voltage switchgear and controlgear standards
• CE: Carries CE marking for conformity with applicable EU directives
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Plug-in mounting assemblies for Tmax XT4 series power circuit breakers in industrial switchboards
• Replacement or spare chassis fixed part for XT4 P FP 3p EF configurations
• Industrial control panels and motor control centers requiring modular breaker mounting
• Automation and distribution systems demanding reliable, standards-compliant electrical components
