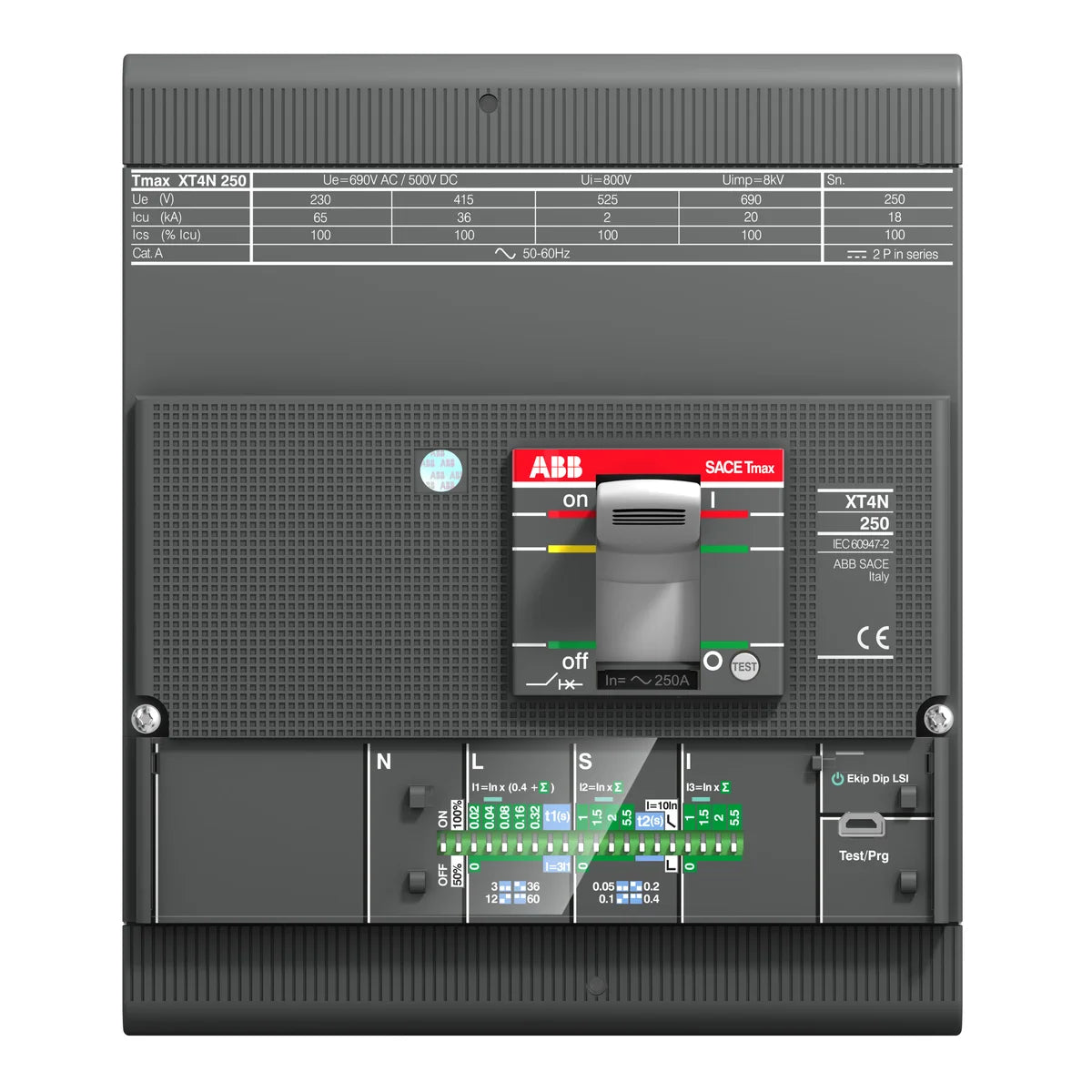

ABB 1SDA068147R1 XT4N 250 Ekip Dip LS/I In=250A 4p F F 250A 4-Pole Fixed Moulded Case Circuit Breaker

The ABB XT4N 250 Ekip Dip LS/I In=250A 4p F F (SKU: 1SDA068147R1) is a 250A, 4-pole fixed-mount power circuit-breaker from the Tmax XT4 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Delivering a breaking capacity of 65 kA at 220 V AC and equipped with the Ekip Dip LS/I trip unit, this breaker provides precise overload and short-circuit protection. Compact at 140 mm × 160 mm × 82.5 mm and weighing just 2.931 kg, it is designed for efficient panel integration.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with the Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical regulation
• EU Directive 2011/65/EU: European RoHS Directive compliance
• Amendment 2015/863: Updated RoHS substance list compliance
• IEC 60947-2: Low-voltage switchgear and controlgear — Circuit-breakers standard
• IEC60947-2: Verified conformity to IEC circuit-breaker performance standard
• ATEX: Approved for use in potentially explosive atmospheres
• CE: CE marking confirming conformity with applicable EU directives
• VDE: Certified by the German Association for Electrical, Electronic and Information Technologies
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling

Applications & Use Cases

• Transformer and generator feeder protection in industrial power distribution panels
• Installation protection for main and sub-distribution boards
• Control panel circuit protection where high breaking capacity and compact dimensions are required
• Industrial automation systems requiring IEC 60947-2 compliant protection devices
• Hazardous-area installations where ATEX certification is mandatory
