ABB 1SDA068126R1 XT4N 250 Ekip Dip LS/I In=250A 3p F F Moulded Case Circuit Breaker 250A 3P Fixed

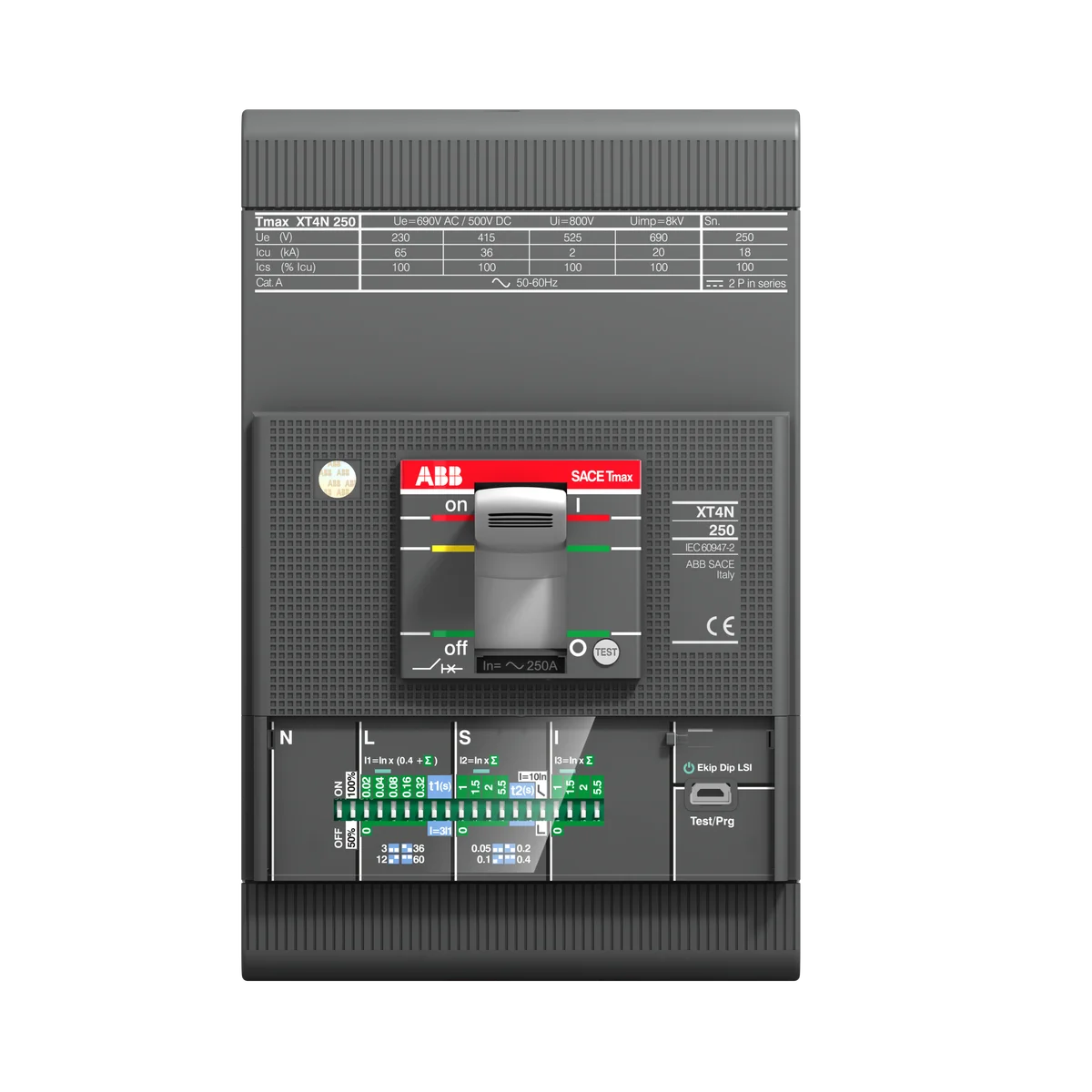

The ABB 1SDA068126R1 XT4N 250 Ekip Dip LS/I In=250A 3p F F is a 250A, 3-pole fixed-mount moulded case circuit breaker from the Tmax XT4 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring the Ekip Dip LS/I electronic trip unit with long-time and instantaneous protection functions, this breaker delivers a breaking capacity of 65 kA at 220 V AC, making it suitable for high-fault-current switchgear and distribution panels. Compact at 105 mm × 160 mm × 82.5 mm and weighing just 2.312 kg, the XT4N integrates seamlessly into space-critical control panels.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Compliant with the international standard for low-voltage circuit breakers (referenced as both IEC 60947-2 and IEC60947-2)
• CE: Conforms to applicable European Union directives for market access within the EU/EEA
• ATEX: Certified for use in potentially explosive atmospheres under ATEX directive requirements
• VDE: Tested and certified by VDE, Germany's leading electrotechnical testing institute
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical and electronic equipment
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
• EU Directive 2011/65/EU: Full RoHS compliance under this directive governing hazardous substance restrictions
• Amendment 2015/863: Updated RoHS compliance including the four additional restricted substances introduced by this amendment
• WEEE: Registered and compliant with the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

The XT4N 250 Ekip Dip LS/I In=250A 3p F F is the preferred choice for engineers designing protection schemes in the following scenarios:

• Transformer Protection: Provides reliable overcurrent and short-circuit protection for LV transformer secondary circuits up to 250 A.
• Generator Protection: Guards generator output circuits against overloads and fault currents in standby and prime power installations.
• Installation Protection: Acts as a main or sub-main breaker in industrial switchboards, MCC panels, and distribution boards.
• High Fault-Level Applications: The 65 kA breaking capacity at 220 V AC makes it suitable for installations close to large power sources where prospective fault currents are elevated.
• Hazardous Area Equipment: ATEX certification permits deployment in Zone 1/Zone 2 classified industrial environments.
