ABB 1SDA068069R1 XT3N 250 TMD 200-2000 4p F F InN=100% Moulded Case Circuit Breaker 4P 200-2000A 50kA

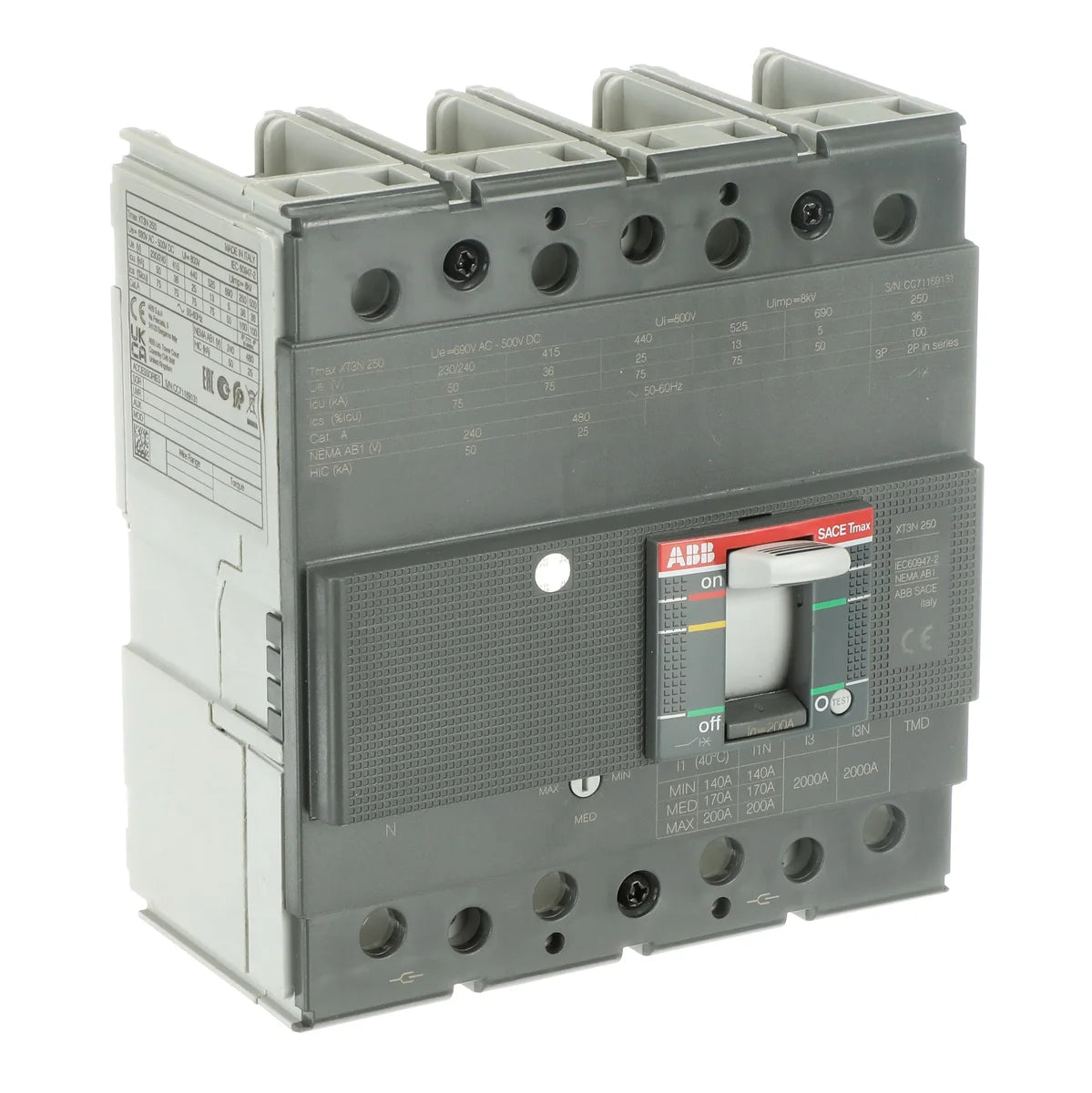

The ABB 1SDA068069R1 — catalog number XT3N 250 TMD 200-2000 4p F F InN=100% — is a 4-pole, fixed-mount power circuit-breaker from the Tmax XT3 series, designed for transformer, generator, and installation protection with a rated current range of 200–2000 A and a breaking capacity of 50 kA at 220 V AC. Built to IEC 60947-2 standards, this moulded case circuit-breaker delivers reliable overcurrent and short-circuit protection in demanding industrial environments.

Technical Specifications

Certifications & Standards

• IEC 60947-2: Compliant with the international standard for low-voltage switchgear and controlgear — circuit-breakers
• CE: Conforms to applicable European Union safety, health, and environmental protection requirements
• ATEX: Certified for use in potentially explosive atmospheres
• VDE: Tested and approved by the German Association for Electrical, Electronic & Information Technologies
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical equipment
• REACH: Compliant with EU REACH regulation on chemical substance registration and evaluation
• EU Directive 2011/65/EU: Restriction of Hazardous Substances directive compliance confirmed
• Amendment 2015/863: Compliant with the updated RoHS substance list under EU amendment 2015/863
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for end-of-life management

Applications & Use Cases

• Transformer and generator feeder protection in industrial power distribution panels
• Installation protection for main and sub-distribution boards up to 2000 A
• Control panels and motor control centres requiring 4-pole overcurrent protection
• Hazardous area installations where ATEX certification is mandatory
• Industrial automation systems demanding IEC 60947-2 compliant protective devices
