- ABB 1SDA060223R1 T6S 800 TMA 800-8000 4p F F InN=100%In 800A 4-Pole Fixed Air Circuit Breaker ABB 1SDA060223R1 T6S 800 TMA 800-8000 4p F F InN=100%In 800A 4-Pole Fixed Air Circuit Breaker
% $-1,485.48

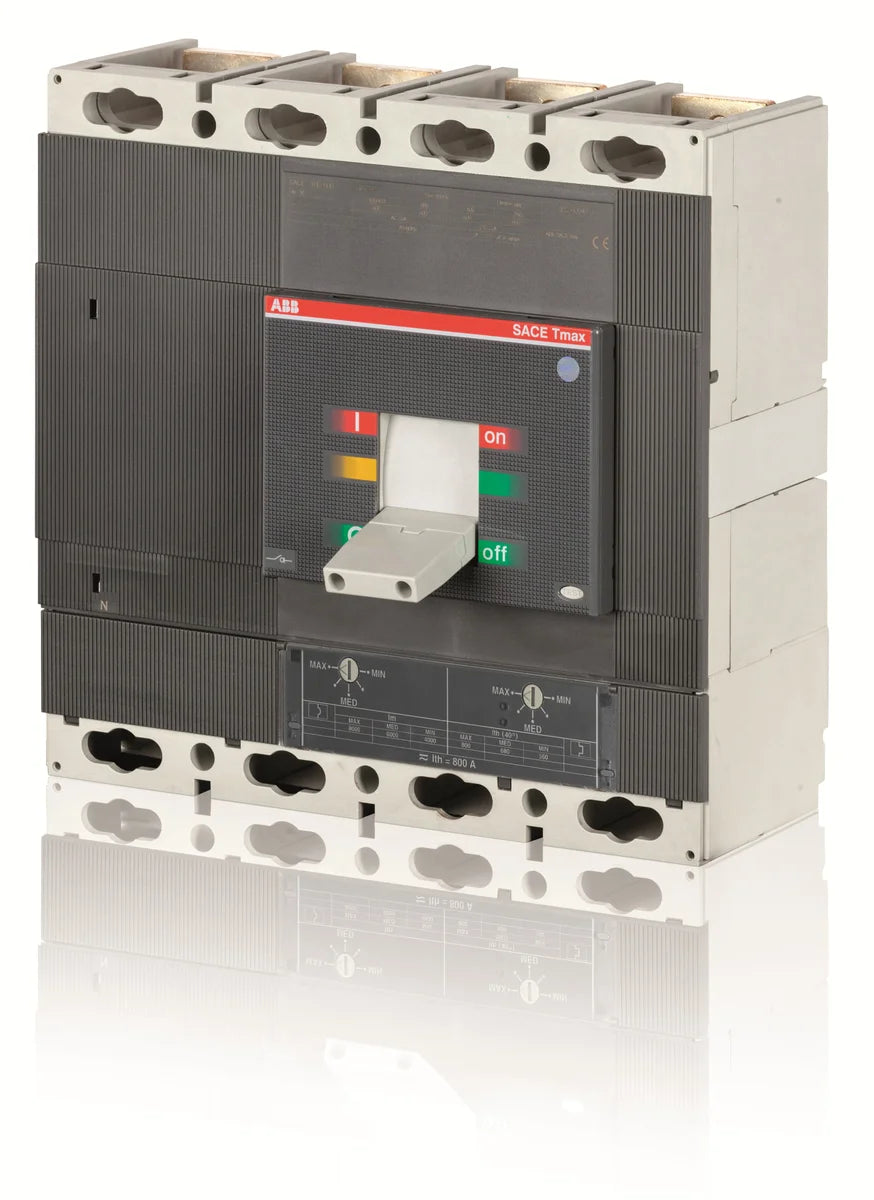

ABB 1SDA060223R1 T6S 800 TMA 800-8000 4p F F InN=100%In 800A 4-Pole Fixed Air Circuit Breaker
Brand:
ABB
Reference No:
1SDA060223R1
Catalog No:
T6S 800 TMA 800-8000 4p F F InN=100%In
Series:
Tmax T6
Tariff Code (GTIP):
85362090
- Description
The ABB 1SDA060223R1 — catalog number T6S 800 TMA 800-8000 4p F F InN=100%In — is an 800 A, 4-pole fixed-mount air circuit breaker from the ABB Tmax T6 series, designed for low-voltage power distribution and motor protection applications requiring robust overcurrent and short-circuit control. The T6S 800 TMA 800-8000 4p F F InN=100%In features a thermomagnetic TMA trip unit with a current range of 800–8000 A, providing precise and reliable protection across demanding industrial environments.
Technical Specifications
| Catalog Number | T6S 800 TMA 800-8000 4p F F InN=100%In |
| SKU | 1SDA060223R1 |
| Brand | ABB |
| Series | Tmax T6 |
| Rated Current | 800 A |
| Number of Poles | 4 |
| Breaking Capacity (Icu @ 220V AC) | 85 kA |
| Trip Unit | TMA (Thermomagnetic) |
| Neutral Protection | InN = 100% In |
| Mounting Type | Fixed (F F) |
| Dimensions (W × H × D) | 280 mm × 268 mm × 103.5 mm |
| Weight | 12 kg |
| EAN | 8015644626839 |
Certifications & Standards
- CE: Compliant with EU product safety and electromagnetic compatibility requirements
- IEC: Designed and tested in accordance with applicable IEC low-voltage switchgear standards
- RoHS: Compliant with the restriction of hazardous substances in electrical and electronic equipment
- REACH: Meets EU REACH regulation requirements for chemical substance management
- EU Directive 2011/65/EU & Amendment 2015/863: Fully compliant with the EU RoHS Directive including the 2015 amendment expanding restricted substance lists
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for end-of-life product take-back and recycling
Applications & Use Cases
- Main and sub-main distribution boards in industrial facilities and commercial buildings
- Motor feeder and branch circuit protection in heavy-duty manufacturing environments
- Generator and transformer outgoing protection where high breaking capacity is required
- Low-voltage switchgear panels requiring 4-pole isolation with full neutral protection (InN = 100%In)
- Infrastructure, data centres, and utility distribution where ABB Tmax T6 series is specified
Technical Details
Rated Current (Ampere)
800 A A
Breaking Capacity (kA)
(220 V AC) 85 kA kA
Mounting Type
Fixed
Catalog No
T6S 800 TMA 800-8000 4p F F InN=100%In
Number of Poles
4
Model Number
T6S
Tariff Code
85362090
