ABB 1SBL177001R1310 AF16-30-10-13 3-Pole 30A 690V 7.5kW Coil 100-250V AC/DC Power Contactor AC Switching

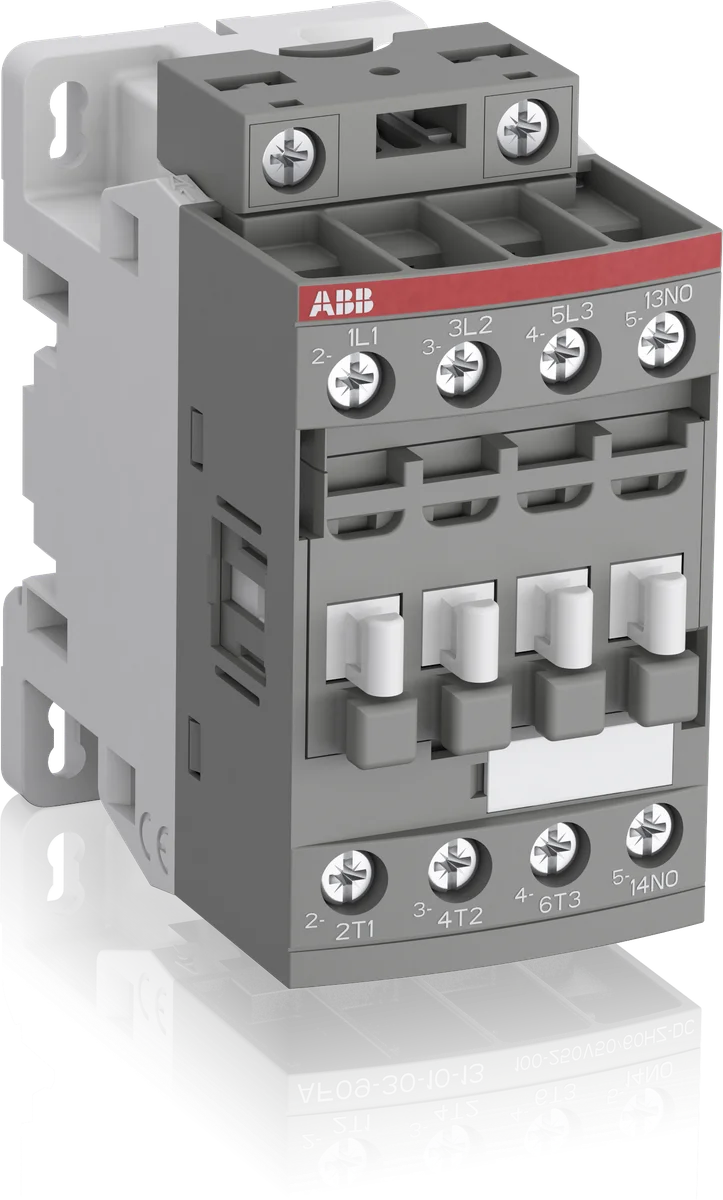

The ABB AF16-30-10-13 power contactor (SKU 1SBL177001R1310) is a 3-pole, 30 A AC switching contactor rated at 690 V with a wide-range 100–250 V AC/DC coil, delivering 7.5 kW motor switching capability in a compact 45 × 86 × 77 mm footprint. Part of ABB's proven AF Series, the AF16-30-10-13 is engineered for demanding industrial automation and motor control applications where reliable, efficient AC switching is essential.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliant for Great Britain market
• UL: Underwriters Laboratories listed
• UL 60947-4-1: UL standard for low-voltage switchgear — contactors
• UL 60335-2-40: UL standard for particular requirements for electrical heat pumps, air-conditioners and dehumidifiers (LZGH2A2L)
• CSA: Canadian Standards Association certified
• CSA C22.2 No. 60335-2-40: CSA standard for heat pumps and air-conditioners (LZGH2A2L)
• CSA C22.2 No. 60947-4-1: CSA standard for low-voltage contactors
• CSA C22.2 No. 60335: CSA standard series for household and similar electrical appliances
• CSA C22.2 No. 60947: CSA standard series for low-voltage switchgear and controlgear
• IEC 60947-1 / EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-4 / EN 60947-4: Contactors and motor-starters standard
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60068-2-27: Environmental testing — shock
• IEC/EN 60947-1: Combined IEC/EN low-voltage switchgear general rules
• IEC/EN 60947-4: Combined IEC/EN contactors and motor-starters
• CCC: China Compulsory Certification
• CQC: China Quality Certification
• CB: CB Scheme — international safety certification
• ABS: American Bureau of Shipping — marine approval
• BV: Bureau Veritas — marine and offshore approval
• EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• EN 45555-92: Supplementary EN 45555 standard
• REACH: Compliant with EU REACH regulation (chemicals)
• RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• AC motor switching and control in industrial automation panels
• HVAC systems — heat pumps, air-conditioning units, and dehumidifiers
• Control panel assemblies requiring compact, high-reliability switching
• Building automation and facility management electrical systems
• Marine and offshore electrical installations (ABS, BV approved)
• Machine tool and conveyor motor control circuits
