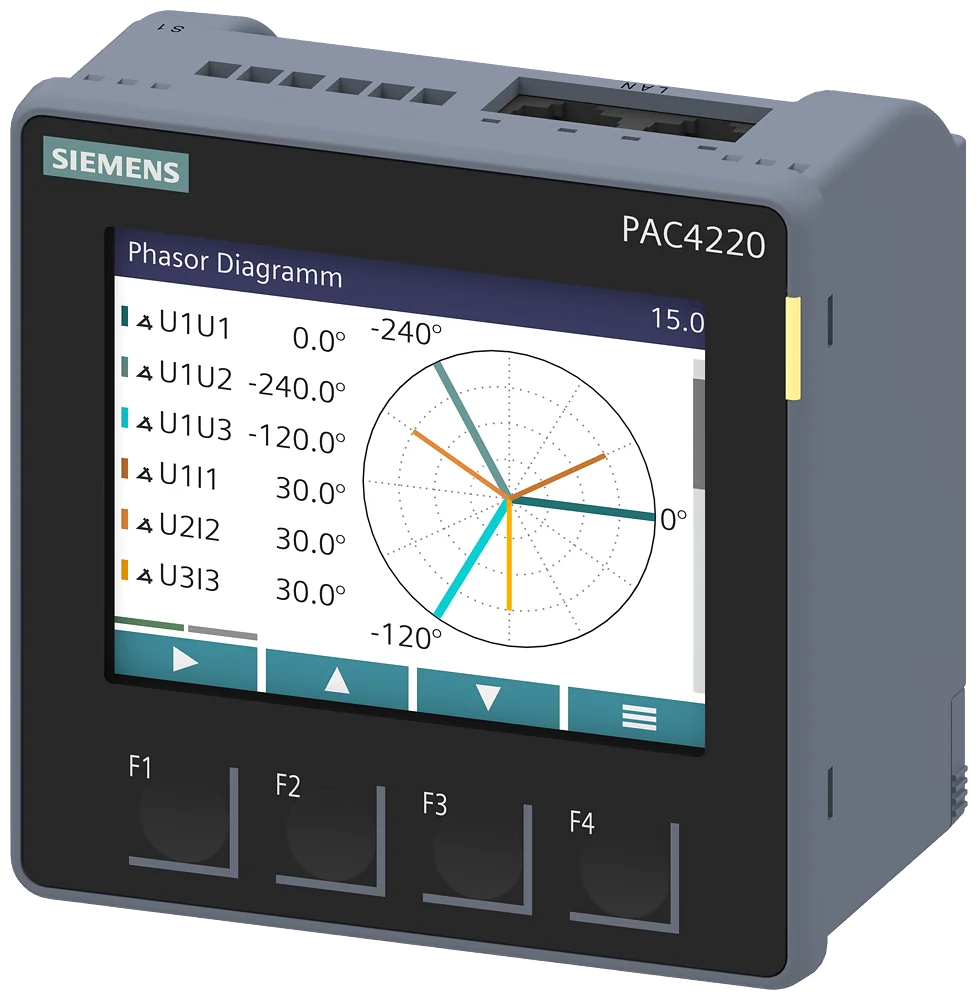

Siemens 7KM4220-0BA01-1EA0 7KM4 690/400V Energy Analyzer

The Siemens 7KM4220-0BA01-1EA0 is a measuring device for power system quality measurement from the SENTRON/SIRIUS 7KM4 series. SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC 61557-12 active energy Class 0.2 (Class 0.2S acc. to IEC 62053-22) 96 x 96 mm, 3-phase, 45 - 65 Hz Ue rated: 690/400 V, Ie rated: x/1 A or x/5 A AC/DC wide-range power supply 95 to 250 V +-10% (AC), 110 to 270 V +-10% (DC) screw terminal connection control panel instrument with measurement of electrical variables apparent / active / reactive energy / cos phi / THDu / THDi / even and odd harmonics per phase up to 64th. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

Certifications & Standards

• IEC 61557-12
• IEC 62053-22
• IEC61557-12
• IEC62053-22
• IEC62053-23
• IEC62053-31

Applications & Use Cases

The Siemens 7KM4220-0BA01-1EA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 7KM4 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
