Siemens 7KM3220-1BA01-1EA0 Energy Analyzer

Siemens 7KM3220-1BA01-1EA0 7KM3 690/400V Energy Analyzer

Name: Siemens 7KM3220-1BA01-1EA0 7KM3 690/400V Energy Analyzer
Brand: Siemens
SKU: 7KM3220-1BA01-1EA0
Price: 619.86 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 7KM3220-1BA01-1EA0

Catalog No: 7KM3220-1BA01-1EA0

Series: 7KM3

Rated Voltage: 690/400V

Stock: 19

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$619.86

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

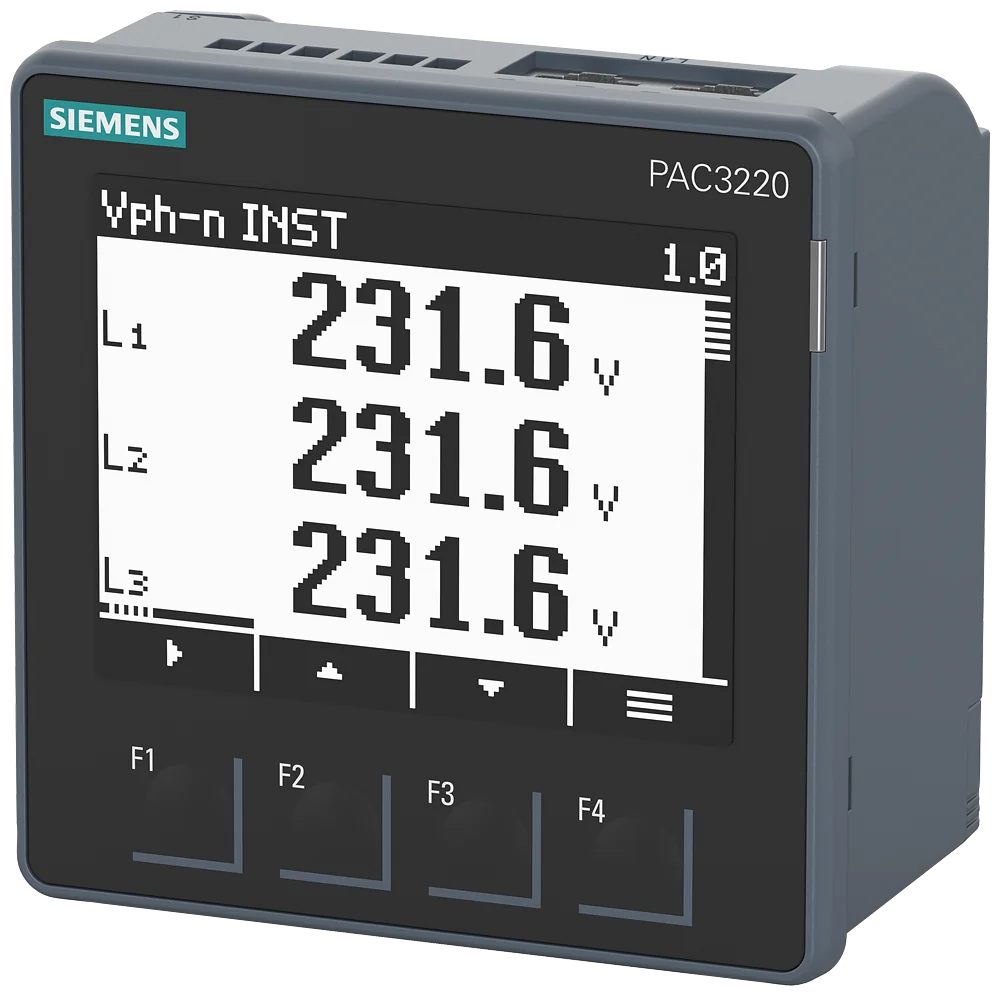

The Siemens 7KM3220-1BA01-1EA0 is a multimeter from the SENTRON/SIRIUS 7KM3 series. SENTRON PAC3220, LCD 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus TCP, with graphical display, Ue rated: 690/400 V, 45-65 Hz, Ie rated: X/1 A or X/5 A AC, auxiliary power: 24 ... 60 V -20/+10% DC, screw terminal connection. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	7KM3220-1BA01-1EA0
Brand	Siemens
Series	7KM3
Product Type	Energy Analyzer
Product brand name	SENTRON
Product designation	multimeter
Design of the product	basic
Product type designation	7KM PAC3220
For voltage measurement	TRMS
For current measurement	TRMS
Type of measured value detection	complete
Voltage curve	Sinusoidal or distorted
Initial value	45 Hz
Full-scale value	65 Hz
Set at 50 Hz	No
Set to 60 Hz	No
Design of the power supply	Extra-low voltage power supply unit
Type of voltage of the supply voltage	DC
Supply voltage at DC	24 ... 60 V
Protection class IP on the front	IP65
Degree of protection NEMA rating of the enclosure	NEMA Type 5
Suitability for operation	Installation in stationary panels in closed rooms
Weight	0.4245 kg
Country of Origin	HU

Certifications & Standards

IEC61557-12
IEC62053-22
IEC62053-23
IEC62053-31

Applications & Use Cases

The Siemens 7KM3220-1BA01-1EA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 7KM3 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

690/400V

Catalog No

7KM3220-1BA01-1EA0

Standards

IEC61557-12, IEC62053-22, IEC62053-23, IEC62053-31

Delivery Date (Days)

1-2 days

Model Number

7KM3
