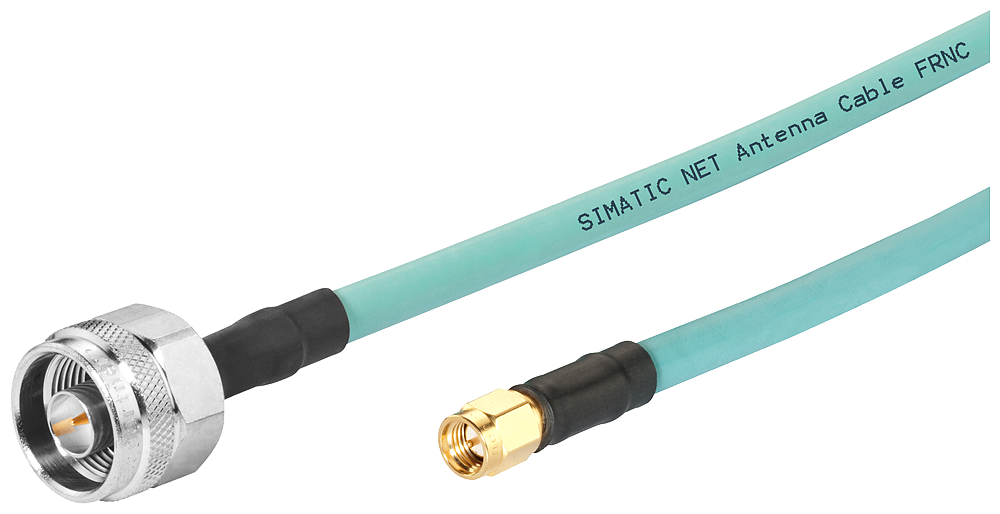

Siemens 6XV1875-5LE30 SIMATIC NET N-Connect/SMA Antenna Connecting Cable 0.3 m Antenna Cable

The Siemens 6XV1875-5LE30 is a preassembled N-Connect/SMA male/male antenna connecting cable, 0.3 m long, with 50 ohm impedance, for linking a SIMATIC NET antenna to a SCALANCE M router or gateway. It covers the 0 to 6000 MHz band used by IWLAN and mobile-radio antennas, with a minimum return loss of 23 dB.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

At 0.3 m, this cable is sized for an antenna mounted directly on or next to a SCALANCE M enclosure rather than at a distance - the short run keeps attenuation at a minimum for the mobile-radio and IWLAN bands it carries. For antennas mounted further away, an N-Connect/N-Connect or N-Connect/R-SMA cable in a longer length from the same SIMATIC NET accessory line is the better fit, depending on the connector on the SCALANCE unit.

Applications

Short RF jumper for connecting a SIMATIC NET antenna directly to a SCALANCE M router in mobile-radio or IWLAN gateway installations.
