Siemens 6XV1875-5CH10 SIMATIC NET N-Connect/R-SMA Antenna Connecting Cable 1 m Antenna Cable

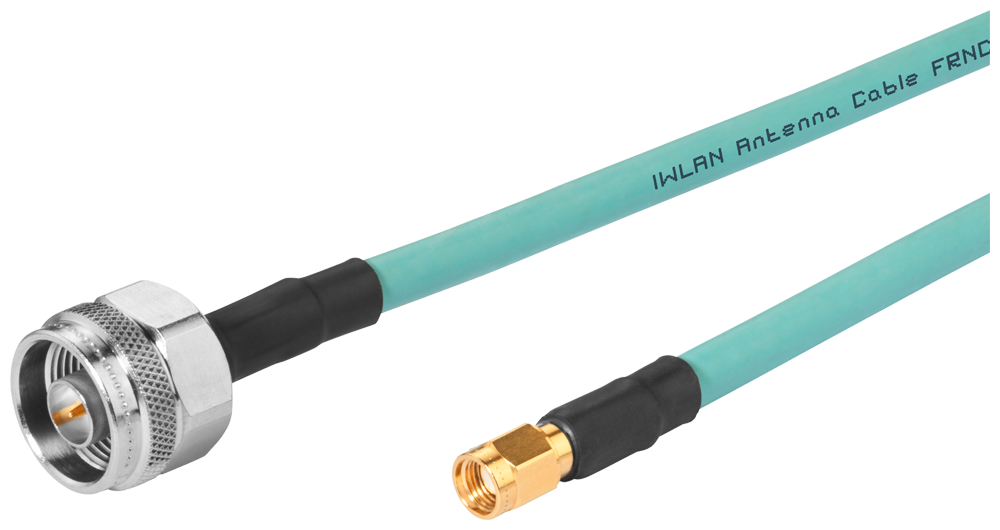

The Siemens 6XV1875-5CH10 is a preassembled N-Connect/R-SMA male/male antenna connecting cable, 1 m long, with 50 ohm impedance and IP68 protection when mated. It links a SIMATIC NET antenna to a SCALANCE access point or client that carries an R-SMA port, covering the 0 to 6000 MHz band with a minimum return loss of 23 dB.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

At 1 m, this cable suits an antenna mounted on an adjacent panel or the outside of the same cabinet as the access point or client. The 0.3 m version covers tighter runs, and the 2 m version reaches further; pick by the actual measured run, since the 0.53-0.89 dB/m attenuation across 2.4/5.2/5.85 GHz adds up with length and reduces the link budget at the radio.

Applications

Flexible RF jumper for connecting a SIMATIC NET antenna to a SCALANCE W access point or client fitted with an R-SMA connector, in IWLAN installations such as RCoax-fed cells and other access-point antennas.
