Siemens 6XV1873-6AN80 SIMATIC NET FO Standard Cable GP 50/125 80m 4x SC Industrial Network Cable

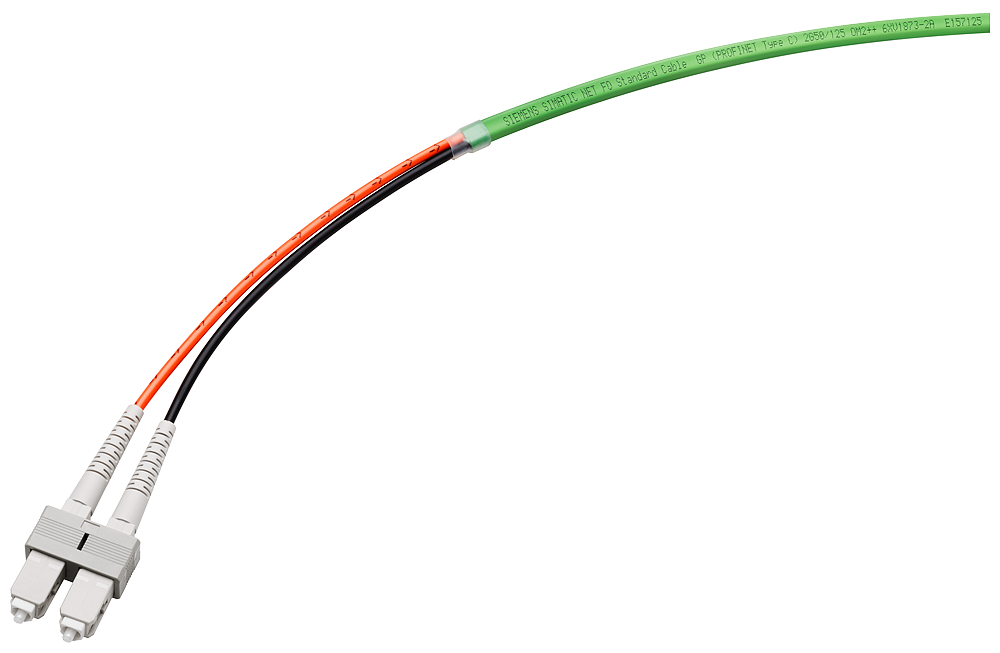

The Siemens 6XV1873-6AN80 is a SIMATIC NET FO Standard Cable GP, a 50/125 µm OM2 multi-mode fiber-optic cable pre-assembled with four SC connectors (2x2 SC) and cut to a fixed 80 m length with an integrated insertion aid. It supports Industrial Ethernet runs up to 750 m over 1000BaseSX or 2000 m over 1000BaseLX, and PROFIBUS segments up to 3000 m, and carries UL c(UL)us OFN FT4 approval for indoor and outdoor installation.

Technical Specifications

Certifications & Standards

• RoHS

Selection Notes

At 80 m, the longest length in this series, the built-in insertion aid lets the assembly be drawn through conduit between distant cabinets without a separate pulling head or fish tape. The four-SC termination (2x2 SC) fits SIMATIC NET ports, patch panels, or media converters with single-SC ports directly, without needing an LC-to-SC adapter at either end. Attenuation over 80 m stays well inside the 750 m 1000BaseSX and 5000 m 100BaseFX segment budgets, so link margin is not the constraint here; the 1200 N installation load and the insertion aid are what make the pull practical.
