Siemens 6XV1873-6AN40 SIMATIC NET FO Standard Cable GP 50/125 40m 4x SC Industrial Network Cable

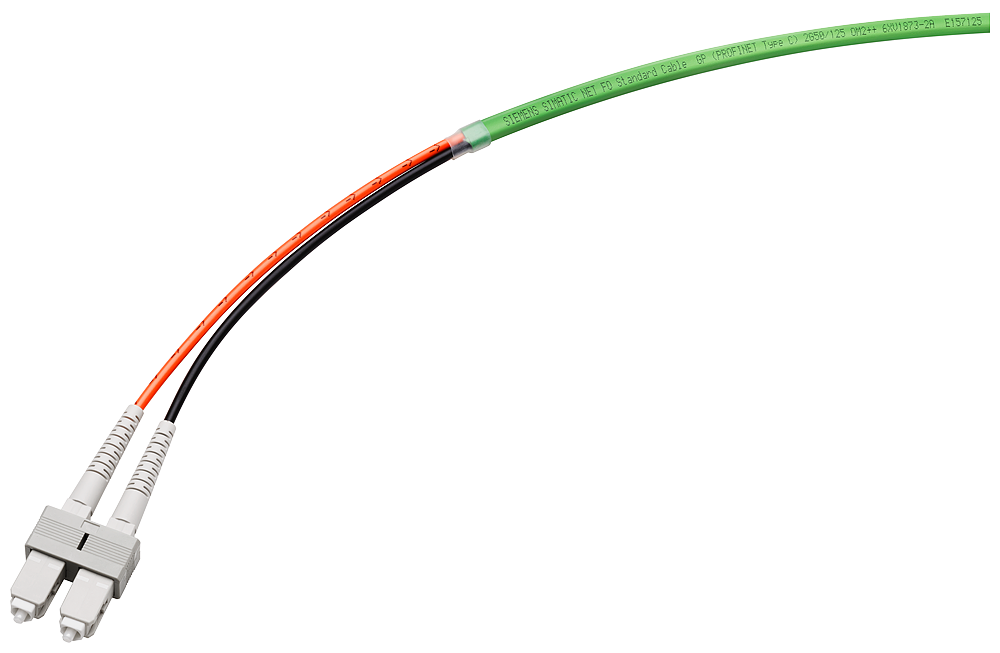

The Siemens 6XV1873-6AN40 is a SIMATIC NET FO Standard Cable GP, a 50/125 µm OM2 multi-mode fiber-optic cable pre-assembled with four SC connectors (2x2 SC) and cut to a fixed 40 m length. It supports Industrial Ethernet runs up to 750 m over 1000BaseSX or 2000 m over 1000BaseLX, and PROFIBUS segments up to 3000 m, and carries UL c(UL)us OFN FT4 approval for indoor and outdoor installation.

Technical Specifications

Certifications & Standards

• RoHS

Selection Notes

At 40 m, this reaches across a larger production hall or links two buildings on the same site over an above-ground cable route. The four-SC termination (2x2 SC) fits SIMATIC NET ports, patch panels, or media converters with single-SC ports directly, without needing an LC-to-SC adapter at either end. At this length, the 1200 N short-term installation load matters more than on the shorter variants: it sets how much pulling tension the run can take through a long conduit or tray section.
