Siemens 6XV1871-5BN10 SIMATIC NET IE Connecting Cable RJ45-180 Cat5e 10 m Industrial Network Cable

% $-102.46
Siemens 6XV1871-5BN10 IE Connecting Cable RJ45-180 Industrial Network Cable – Cat5e 10 m
Siemens 6XV1871-5BN10 IE Connecting Cable RJ45-180 Industrial Network Cable – Cat5e 10 m

Siemens 6XV1871-5BN10 SIMATIC NET IE Connecting Cable RJ45-180 Cat5e 10 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1871-5BN10
Catalog No: 6XV1871-5BN10
Series: SIMATIC NET
Tariff Code (HS): 85444210
Rated Voltage: 80 V
Communication: PoE/PoE+, 10/100 Mbps (Cat5e Class D)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$102.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

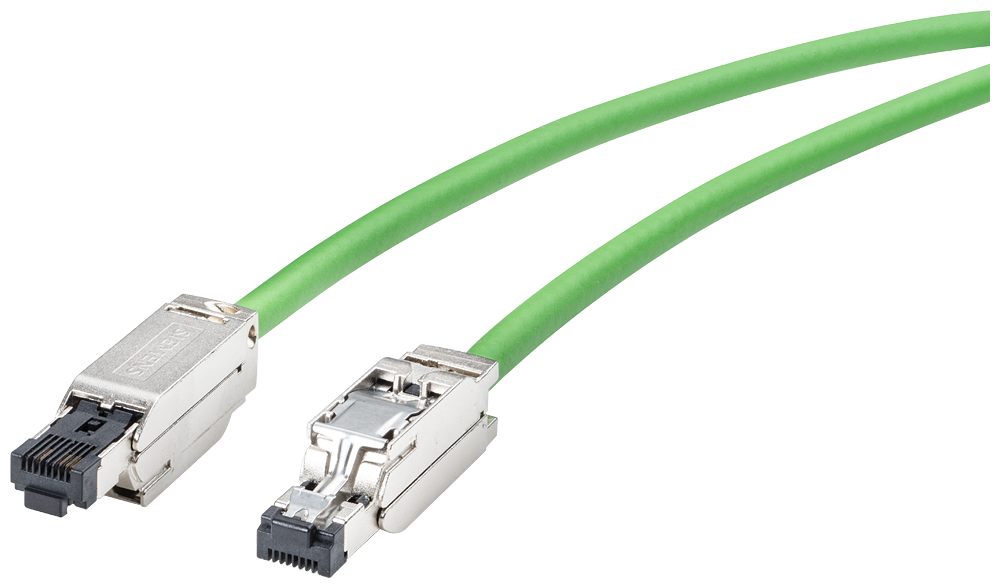

The Siemens 6XV1871-5BN10 is a 10 m SIMATIC NET IE Connecting Cable with two pre-assembled IE FC RJ45-180 connectors, built for 10/100 Mbps Industrial Ethernet connections over Cat5e Class D cabling. Its SF/UTP 4-core design is rated for 3 million bending cycles in a drag chain and carries PoE and PoE+ power at a 150 N maximum tensile load.

Technical Specifications

SKU 6XV1871-5BN10
EAN 4019169854856
Brand Siemens
Series SIMATIC NET
Product Type Designation IE Connecting Cable IE FC RJ45-180 / IE FC RJ45-180
Cable Designation SF/UTP
Wire Length 10 m
Number of Electrical Connections 2
Structured Cabling Standard Cat5e, Class D
Suitability 10/100 Mbps Industrial Ethernet connections
Attenuation at 10 MHz (max) 0.06 dB/m
Attenuation at 100 MHz (max) 0.2 dB/m
Impedance (1-100 MHz) 100 Ω
Impedance Tolerance (1-100 MHz) 5%
Near-End Crosstalk at 1-100 MHz 0.5 dB/m
Transfer Impedance at 10 MHz 20 mΩ/m
Loop Resistance (max) 120 mΩ/m
Operating Voltage (RMS) 80 V
NVP Value 66%
Number of Electrical Cores 4
Shield Design SF/UTP, overlapped aluminum-clad foil, tinned copper braided shield
Conductor Diameter (AWG22) 0.75 mm
Cable Sheath Outer Diameter 6.5 mm
Wire Insulation Material polyethylene (PE)
Cable Sheath Material PVC
Cable Sheath Color green
Bending Radius, Single Bend (min) 32.5 mm
Bending Radius, Multiple Bends (min) 58.5 mm
Bending Radius, Continuous Bending 100 mm
Bending Cycles 3,000,000 (drag chain, 100 mm radius, 4 m/s, 4 m/s²)
Maximum Tensile Load 150 N
Weight per Length 68 kg/km
Plug-in Connection Design RJ45-180
Ambient Temperature, Operation -25 ... +75 °C
Ambient Temperature, Storage -25 ... +75 °C
Ambient Temperature, Installation -10 ... +60 °C
Fire Behavior flame resistant per UL 1685 (CSA FT4)
PoE Capability Yes
PoE+ Capability Yes
Test Voltage AC, Core-to-Core 500 V
Test Voltage AC, Core-Shield 1500 V
Country of Origin DE
Net Weight 0.58 kg

Certifications & Standards

  • EAC
  • CE
  • RoHS

Selection Notes

At 10 m this cord covers longer machine-to-cabinet runs, including many drag-chain applications, without a coupled joint partway along the run. The 100 mm minimum continuous-bend radius and 3 million bending-cycle rating at 4 m/s and 4 m/s² support moving sections as well as fixed wiring. Because the interface caps at 10/100 Mbps over Cat5e Class D, pick a longer cord from the series when the physical route exceeds 10 m instead of extending this one.

Technical Details

Short Description
Siemens 6XV1871-5BN10 IE Connecting Cable RJ45-180, Cat5e SF/UTP, 10 m, drag-chain rated.
Rated Voltage (VAC)
80 V
Catalog No
6XV1871-5BN10
Standards
EAC approval, CE marking, RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1871-5BN10
Tariff Code
85444210
