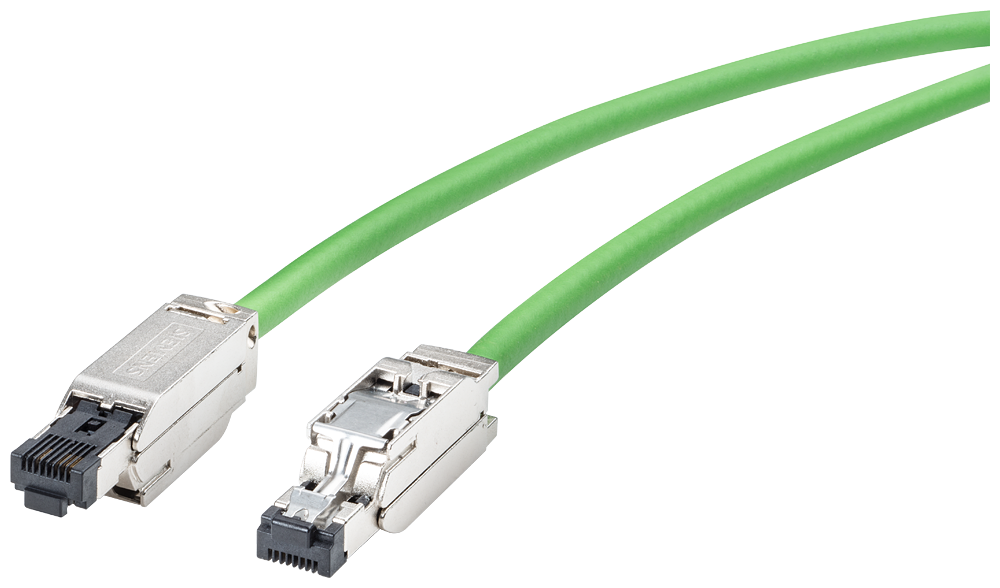

Siemens 6XV1871-5BH50 SIMATIC NET IE Connecting Cable RJ45-180 Cat5e 5 m Industrial Network Cable

% $-76.28
Siemens 6XV1871-5BH50 IE Connecting Cable RJ45-180 Industrial Network Cable – Cat5e 5 m
Siemens 6XV1871-5BH50 IE Connecting Cable RJ45-180 Industrial Network Cable – Cat5e 5 m

Siemens 6XV1871-5BH50 SIMATIC NET IE Connecting Cable RJ45-180 Cat5e 5 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1871-5BH50
Catalog No: 6XV1871-5BH50
Series: SIMATIC NET
Tariff Code (HS): 85444210
Rated Voltage: 80 V
Communication: PoE/PoE+, 10/100 Mbps (Cat5e Class D)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$76.28

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated for 10/100 Mbps Industrial Ethernet connections over Cat5e Class D cabling, the Siemens 6XV1871-5BH50 is a 5 m SIMATIC NET IE Connecting Cable with two pre-assembled IE FC RJ45-180 connectors. Its SF/UTP 4-core design withstands 3 million bending cycles in a drag chain and carries PoE and PoE+ power at a 150 N maximum tensile load.

Technical Specifications

SKU 6XV1871-5BH50
EAN 4019169854849
Brand Siemens
Series SIMATIC NET
Product Type Designation IE Connecting Cable IE FC RJ45-180 / IE FC RJ45-180
Cable Designation SF/UTP
Wire Length 5 m
Number of Electrical Connections 2
Structured Cabling Standard Cat5e, Class D
Suitability 10/100 Mbps Industrial Ethernet connections
Attenuation at 10 MHz (max) 0.06 dB/m
Attenuation at 100 MHz (max) 0.2 dB/m
Impedance (1-100 MHz) 100 Ω
Impedance Tolerance (1-100 MHz) 5%
Near-End Crosstalk at 1-100 MHz 0.5 dB/m
Transfer Impedance at 10 MHz 20 mΩ/m
Loop Resistance (max) 120 mΩ/m
Operating Voltage (RMS) 80 V
NVP Value 66%
Number of Electrical Cores 4
Shield Design SF/UTP, overlapped aluminum-clad foil, tinned copper braided shield
Conductor Diameter (AWG22) 0.75 mm
Cable Sheath Outer Diameter 6.5 mm
Wire Insulation Material polyethylene (PE)
Cable Sheath Material PVC
Cable Sheath Color green
Bending Radius, Single Bend (min) 32.5 mm
Bending Radius, Multiple Bends (min) 58.5 mm
Bending Radius, Continuous Bending 100 mm
Bending Cycles 3,000,000 (drag chain, 100 mm radius, 4 m/s, 4 m/s²)
Maximum Tensile Load 150 N
Weight per Length 68 kg/km
Plug-in Connection Design RJ45-180
Ambient Temperature, Operation -25 ... +75 °C
Ambient Temperature, Storage -25 ... +75 °C
Ambient Temperature, Installation -10 ... +60 °C
Fire Behavior flame resistant per UL 1685 (CSA FT4)
PoE Capability Yes
PoE+ Capability Yes
Test Voltage AC, Core-to-Core 500 V
Test Voltage AC, Core-Shield 1500 V
Country of Origin DE
Net Weight 0.36 kg

Certifications & Standards

  • EAC
  • CE
  • RoHS

Selection Notes

At 5 m this cord suits longer cabinet-to-device runs or moves across a machine section without needing a coupled joint. The 100 mm minimum continuous-bend radius and 3 million bending-cycle rating keep it usable in drag chains as well as fixed installations. Since the interface is limited to 10/100 Mbps over Cat5e Class D, pick a longer cord from the series once the route exceeds 5 m rather than splicing an extension.

Technical Details

Short Description
Siemens 6XV1871-5BH50 IE Connecting Cable RJ45-180, Cat5e SF/UTP, 5 m, drag-chain rated.
Rated Voltage (VAC)
80 V
Catalog No
6XV1871-5BH50
Standards
EAC approval, CE marking, RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1871-5BH50
Tariff Code
85444210
