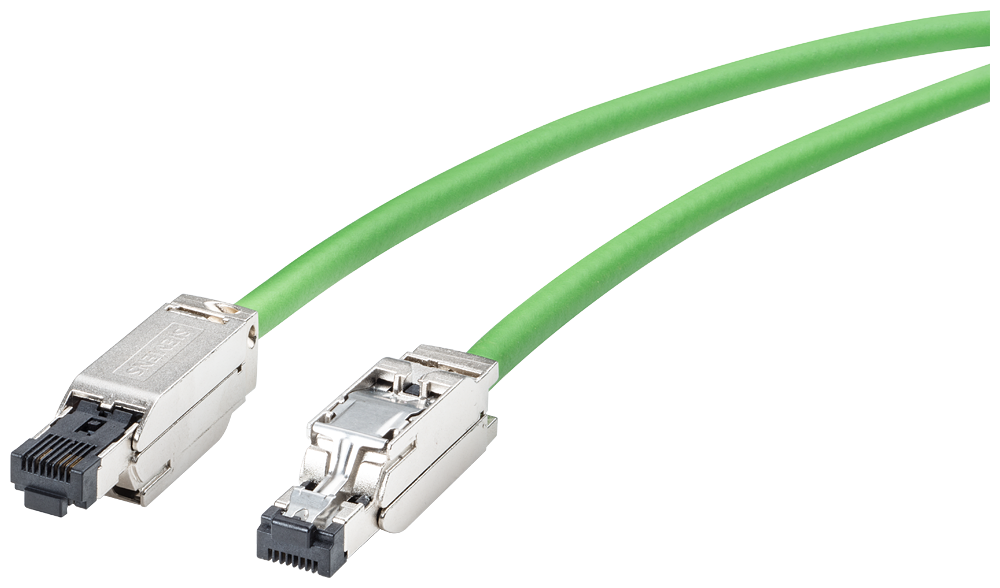

Siemens 6XV1871-5BH10 SIMATIC NET IE Connecting Cable RJ45-180 Cat5e 1 m Industrial Network Cable

The Siemens 6XV1871-5BH10 is a 1 m SIMATIC NET IE Connecting Cable with two pre-assembled IE FC RJ45-180 connectors, built for 10/100 Mbps Industrial Ethernet connections over Cat5e Class D cabling. Its SF/UTP 4-core design is rated for 3 million bending cycles in a drag chain and carries PoE and PoE+ power at a 150 N maximum tensile load.

Technical Specifications

Certifications & Standards

• EAC
• CE
• RoHS

Selection Notes

At 1 m this is the shortest cord in the connecting-cable series, suited for tight cabinet-to-device runs where a coupler would add an unnecessary joint. The 100 mm minimum continuous-bend radius, 3 million bending-cycle rating, and 150 N maximum tensile load make it a direct fit for drag chains and moving machine sections rather than only fixed wiring. Because the interface is rated for 10/100 Mbps over Cat5e Class D, this length suits device-level Industrial Ethernet drops; pick a longer cord from the series when the run between switch and device exceeds 1 m.
