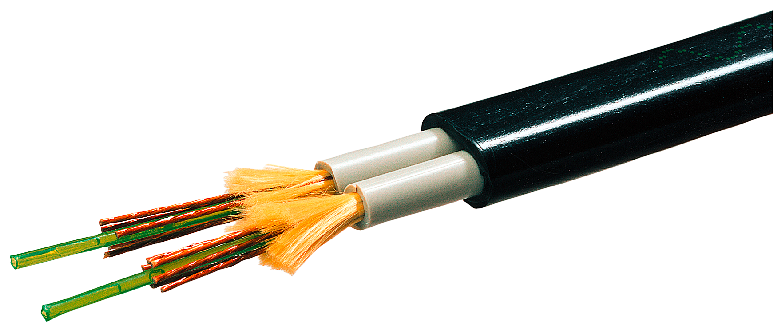

Siemens 6XV1820-5BT30 SIMATIC NET FO Standard Cable 62.5/125 4xBFOC 300 m Industrial Network Cable

% $-2,042.09
Siemens 6XV1820-5BT30 FO Standard Cable 62.5/125 Industrial Network Cable – 300 m, 4xBFOC
Siemens 6XV1820-5BT30 FO Standard Cable 62.5/125 Industrial Network Cable – 300 m, 4xBFOC

Siemens 6XV1820-5BT30 SIMATIC NET FO Standard Cable 62.5/125 4xBFOC 300 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1820-5BT30
Catalog No: 6XV1820-5BT30
Series: SIMATIC NET
Tariff Code (HS): 85447000
Communication: Industrial Ethernet (100BaseFX/1000BaseSX/1000BaseLX), PROFIBUS
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$2,042.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6XV1820-5BT30 is a SIMATIC NET fiber optic standard cable in 62.5/125 µm multimode glass, supplied as a 300 m reel preassembled with four BFOC connectors. Its segmentable outer conductor lets installers trim the core to the exact route length on site, and the cable stays within the 3 dB/km attenuation limit at 850 nm across its full 1500 N tensile rating and IP20 protection class.

Technical Specifications

SKU 6XV1820-5BT30
Brand Siemens
Series SIMATIC NET
EAN 4019169401005
Country of Origin CN
Cable Length 300 m
Product Type Designation Fiber optic standard cable
Product Description Flexible glass fiber-optic cable, preferred length, preassembled
Suitability for Use Cable for installation indoors and outdoors
Connector Assembly Assembled with four BFOC connectors
Cable Designation AT-V(ZN)YY 2X1 G 62,5/125 OM1
Attenuation at 850 nm (max) 3 dB/km
Attenuation at 1300 nm (max) 0.8 dB/km
Bandwidth-Length Product at 850 nm 300 GHz·m
Bandwidth-Length Product at 1300 nm 800 GHz·m
Fibers per FOC Core 1
FO Cores per Cable 2
Fiber Type Multimode graded-index fiber 62.5/125 µm, OM1
FOC Core Design Compact core, diameter 900 µm
Cable Design Segmentable outer conductor
Optical Fiber Diameter 62.5 µm
Optical Fiber Sheath Diameter 125 µm
FOC Core Sheath Diameter 3.5 mm
Cable Sheath Width 9.8 mm
Cable Sheath Thickness 6.3 mm
Fiber Core Material Quartz glass
Optical Fiber Sheath Material Quartz glass
FOC Core Sheath Material PVC
Cable Sheath Material PVC
Strain Relief Material Aramid fibers and glass roving
FOC Core Sheath Color gray
Cable Sheath Color Black
Bending Radius, Single Bend (min) 80 mm
Bending Radius, Multiple Bends (min) 80 mm
Tensile Load, Installation (short-term) 1500 N
Tensile Load, Operation (max) 1500 N
Continuous Shear Force per Length 150 N/cm
Weight per Length 70 kg/km
Net Weight 22.2 kg
Ambient Temperature, Operation -40 to +85°C
Ambient Temperature, Storage -40 to +85°C
Ambient Temperature, Transport -40 to +85°C
Ambient Temperature, Installation -5 to +50°C
Fire Behavior flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)
Chemical Resistance, Mineral Oil not resistant
Chemical Resistance, Grease not resistant
UV Resistance resistant
Protection Class (IP) IP20
Silicon-Free Yes
Max Length, 100BaseFX (Industrial Ethernet) 4000 m
Max Length, 1000BaseSX 500 m
Max Length, 1000BaseLX 1000 m
Max Length, PROFIBUS 3000 m

Certifications & Standards

  • RoHS

Selection Notes

At 300 m this reel remains far under the 4000 m 100BaseFX ceiling and the 3000 m PROFIBUS optical limit, covering long building or yard runs in one unspliced pull. The 1500 N tensile rating and 80 mm bend radius keep it installable through cable tray corners without exceeding the glass fiber's mechanical limits. Use the 200 m or 250 m length instead when the route is shorter, since unused length adds coil bulk at the termination cabinet.

Technical Details

Short Description
SIMATIC NET FO standard cable 62.5/125, 300 m, preassembled with 4 BFOC connectors.
Protection Type
IP20
Catalog No
6XV1820-5BT30
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1820-5BT30
Tariff Code
85447000
