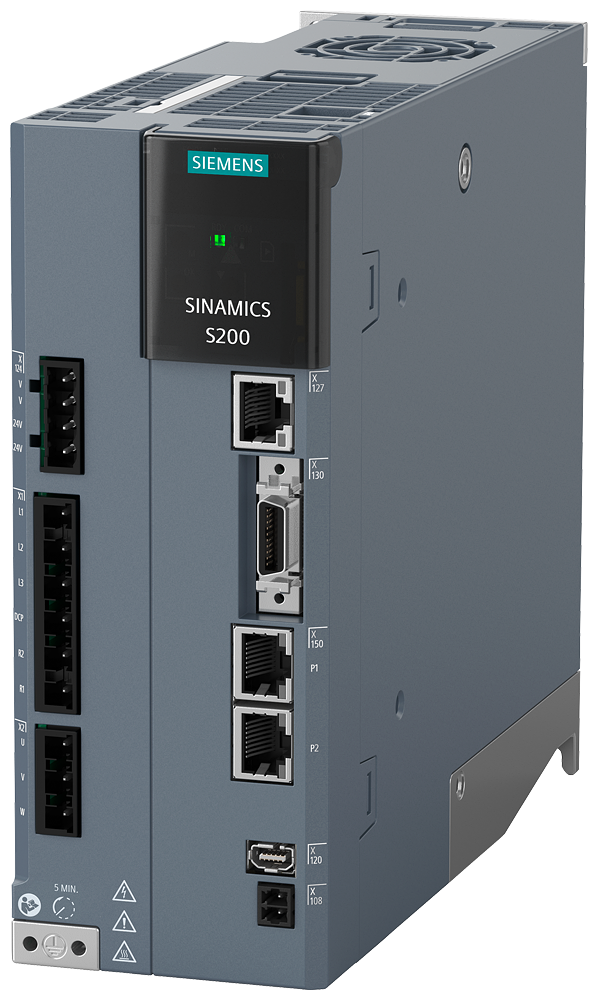

Siemens 6SL5510-1BE12-5AF0 SINAMICS S200 PN 2.5kW 380-480V Servo Drive

The Siemens 6SL5510-1BE12-5AF0 is a SINAMICS S200 servo drive with PROFINET, rated 2.5 kW output from a 380-480 V three-phase AC supply. Frame size FSC, it delivers up to 26.5 A peak output current at 8 kHz pulse frequency and carries IP20 protection in a 90 mm x 180 mm x 200 mm housing.

Technical Specifications

Selection Notes

At 2.5 kW / 7.8 A rated output on a 380-480 V three-phase supply, this FSC-frame variant sits in the middle of the S200 power range; step up to a larger FSC or FSD frame variant when the motor's continuous current exceeds the 7.8 A rating, or down to an FSB frame for lower-power axes. The 26.5 A peak output current, roughly 3.4 times rated, sets how much instantaneous torque the axis can call on for acceleration without tripping an overcurrent fault. As with the smaller S200 variants, PROFINET is integrated, so it drops into an existing PROFINET motion network without an added communication module.

Applications

Single-axis servo positioning on 380-480 V three-phase machines, such as indexing tables, cutting axes, or pick-and-place systems, needing 2.5 kW continuous output over PROFINET.
