Siemens 6SL5310-1BB10-1CF0 SINAMICS S210 230V 0.1kW Frame A Servo Drive

% $-684.23

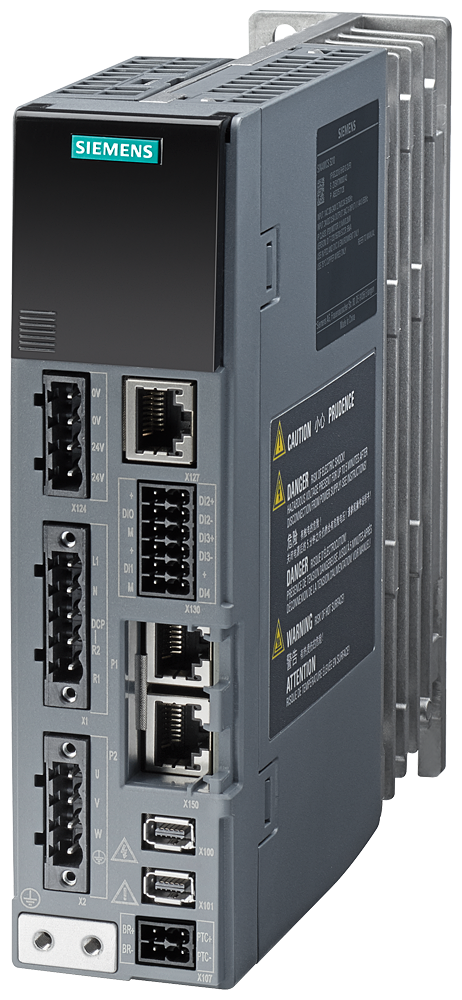

Siemens 6SL5310-1BB10-1CF0 SINAMICS S210 servo drive - 230V 0.1kW frame A
Siemens 6SL5310-1BB10-1CF0 SINAMICS S210 servo drive - 230V 0.1kW frame A

Siemens 6SL5310-1BB10-1CF0 SINAMICS S210 230V 0.1kW Frame A Servo Drive

Brand: Siemens
Reference No: 6SL5310-1BB10-1CF0
Catalog No: 6SL5310-1BB10-1CF0
Series: SINAMICS S210
Tariff Code (HS): 85044095
Rated Current: 3.1 A
Power: 0.1 kW
Rated Voltage: 200-240 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$684.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6SL5310-1BB10-1CF0 is a SINAMICS S210 single-axis servo drive rated 0.1 kW, powered from a 1 AC 200-240 V ±10% line at 45-66 Hz and drawing 1.4 A with an 8.0 A inrush. It delivers up to 3.1 A output current for servo control from 0 to 550 Hz in an IP20 frame size A housing.

Technical Specifications

Catalog No 6SL5310-1BB10-1CF0
SKU 6SL5310-1BB10-1CF0
Brand Siemens
Series SINAMICS S210
Product designation SINAMICS S210
Number of phases (line) 1 AC
Line voltage 200 ... 240 V ±10 %
Line frequency 45 ... 66 Hz
Rated current 1.4 A
Inrush current 8.0 A
Number of phases (motor) 3 AC
Rated power (at 400V) 0.10 kW
Rated current IN 0.8 A
Max. output current 3.1 A
Pulse frequency 8 kHz
Output frequency for servo control 0 ... 550 Hz
Control supply voltage 24 V -15 % ... +20 %
Control supply current demand, max. 0.8 A
Installation altitude 1,000 m (3,281 ft)
Operation -10 ... 50 °C (14 ... 122 °F)
Vibration (operation) Better than class 3K3, EN 60721-3-3
Transport -40 ... 70 °C (-40 ... 158 °F)
Vibration (transport) Class 2K4, EN 60721-3-2
Storage -25 ... 55 °C (-13 ... 131 °F)
Vibration (storage) Class 1K4, EN 60721-3-1
Max. operation humidity 95 %
Max. transport humidity 95 %
Degree of protection IP20
Frame size A
Dimensions (WxHxD) 45 x 170 x 170 mm
Net weight 1.1 kg
Country of Origin CN

Selection Notes

Size this frame size A drive on the 3.1 A maximum output current and 0.1 kW rated power for small single-axis motion tasks; the 8.0 A inrush current on the 1 AC 200-240 V supply matters when sizing upstream fusing or a shared feed for multiple small axes. The 8 kHz pulse frequency and 0-550 Hz servo control range give fine speed resolution on light loads rather than high-torque capability, so this variant fits pick-and-place or small-axis positioning rather than heavy-load drive tasks.

Technical Details

Short Description
SINAMICS S210 servo drive, 1AC 200-240V, 0.1kW, 3.1A max output, frame size A, IP20
Rated Current (Ampere)
3.1 A
Rated Voltage (VAC)
200-240 V
Protection Type
IP20
Catalog No
6SL5310-1BB10-1CF0
Power (kW)
0.1 kW
Delivery Date (Days)
10-15 days
Model Number
6SL5310-1BB10-1CF0
Tariff Code
85044095
