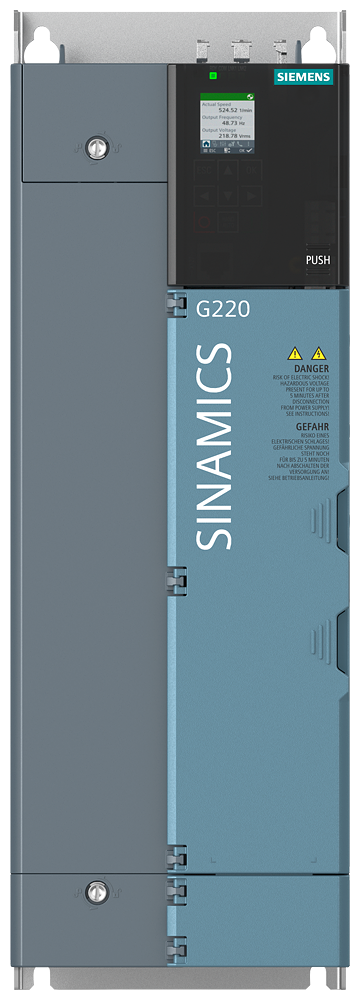

Siemens 6SL4113-2CA20-2AF0 SINAMICS G220 Clean Power 380-500V 18.5kW FSD1 Variable Frequency Drive

The Siemens 6SL4113-2CA20-2AF0 is a SINAMICS G220 Clean Power variable frequency drive rated 18.5 kW low-overload or 15 kW high-overload, for 380...415V / 440...500V (-20/+10 %) three-phase supplies at 50/60 Hz (47...63 Hz). Built in frame size FSD1 (400 x 150 x 245 mm) with IP20 / UL open type protection, it adds a built-in category C2 radio interference suppression filter to the SIL3 safety and integrated braking chopper of the base G220 line.

Technical Specifications

Selection Notes

Choose the low-overload (LO) 18.5 kW rating for variable-torque loads such as pumps and fans, or the 15 kW high-overload (HO) rating for constant-torque loads such as conveyors that need a deeper overload margin. The built-in category C2 radio interference suppression filter means this Clean Power variant meets EN 61800-3 conducted-emission limits without an external filter, so pick it over the basic unfiltered G220 whenever the installation is close to other electronic equipment on the same supply.

Applications

Sizes pumps, fans and other variable-torque loads at the low-overload rating, or conveyors and constant-torque machinery at the high-overload rating, on installations that need factory-fitted C2-level conducted-emission filtering on PROFINET or Modbus TCP networks.
