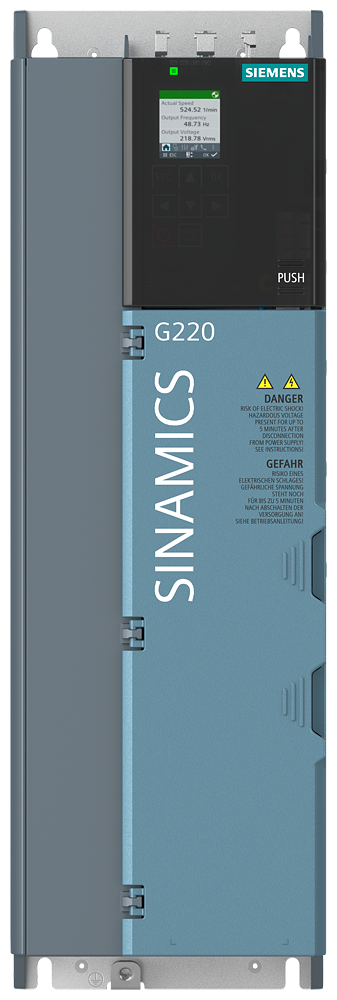

Siemens 6SL4113-0CA18-0AF0 SINAMICS G220 15kW 400V Frame FSC IP20 Variable Frequency Drive

The Siemens 6SL4113-0CA18-0AF0 is a SINAMICS G220 variable frequency drive rated 15 kW low overload (11 kW high overload) for a 380-500V 3AC supply at 50/60 Hz. Built in frame size FSC with IP20 / UL open type protection, it integrates PROFINET and Modbus TCP communication and an SIL3 integrated braking chopper.

Technical Specifications

Selection Notes

The 15 kW low-overload rating (150% for 3 s, 110% for 57 s) suits variable-torque loads such as pumps and fans, while the 11 kW high-overload rating (200% for 3 s, 150% for 57 s) is the figure to size against for constant-torque loads such as conveyors. Frame FSC is the largest frame covered in this power range, stepping up from frame FSB for the higher-current ratings in this series. The integrated SIL3 braking chopper lets a braking resistor be wired directly to this drive for applications with frequent deceleration or overhauling loads, without an external chopper module. PROFINET and Modbus TCP are both available on the same unit, so the fieldbus choice does not change the hardware selection.
