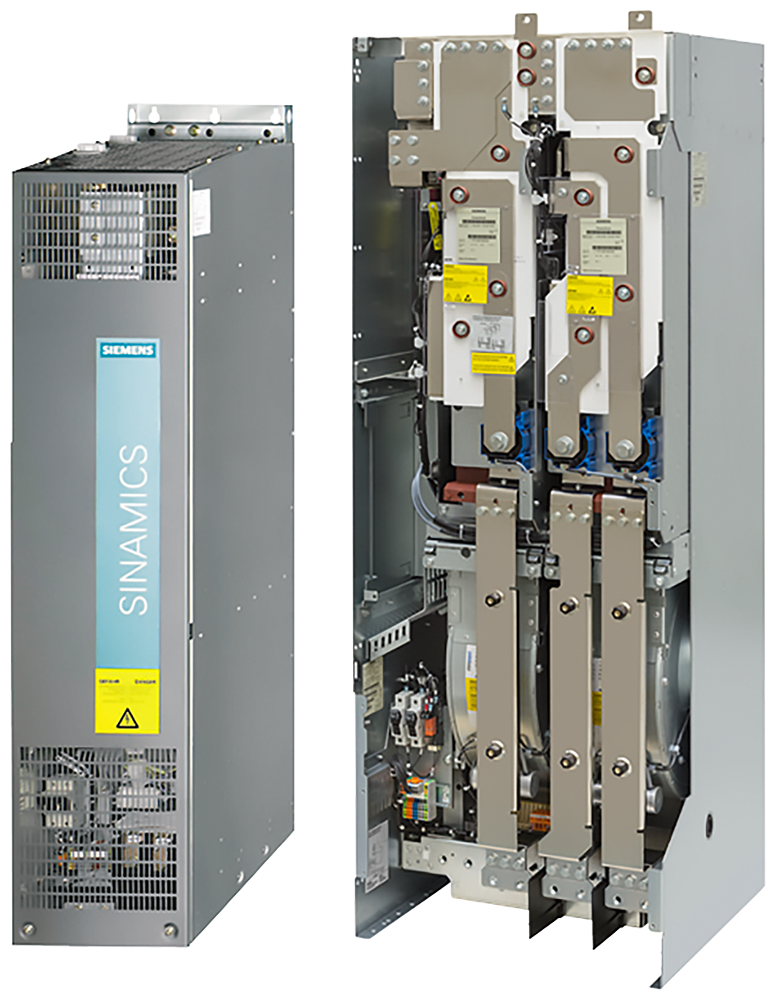

Siemens 6SL3310-1GH34-1AA3 SINAMICS G130 Power Module IP00 690V 410A 400kW VFD Power Module

The Siemens 6SL3310-1GH34-1AA3 is a SINAMICS G130 power module rated 660-690 V 3AC, 50/60 Hz, at 410 A, giving a 400 kW type rating. It uses a 6-pulse supply design without power recovery, ships in IP00 protection, and includes a CIM board with Drive-CLiQ cable; the control unit is ordered separately. Net weight is 294.0 kg.

Technical Specifications

Selection Notes

At 410 A / 400 kW, this sits between the 330 A and 465 A IP00 ratings and shares the 294.0 kg frame with the next size up; choose it when motor rated current is closer to 410 A than to 465 A to avoid unnecessary oversizing. IP00 means this is an open chassis: it relies entirely on the control cabinet for ingress protection and on the cabinet's forced-air duct for cooling, rather than carrying any enclosure of its own. Because the supply section is a 6-pulse design without power recovery, braking energy from the driven load cannot be fed back to the 660-690 V line; it has to be dissipated through a braking resistor or absorbed by a regenerative unit elsewhere in the line-up, not by this module. It ships as the power stage only, with the CIM board and Drive-CLiQ cable fitted but no control module, so a SINAMICS control unit has to be ordered and connected separately before the drive can run a motor. The Drive-CLiQ cable is Siemens' point-to-point digital link between the power module and the control unit, carrying parameter and diagnostic data over a single cable instead of discrete analog wiring.

Applications

This power module is the rectifier/inverter stage of a SINAMICS G130 single-axis chassis drive; it needs a control unit to operate and is built for mounting inside a control cabinet rather than as a stand-alone unit, consistent with its IP00 degree of protection.
