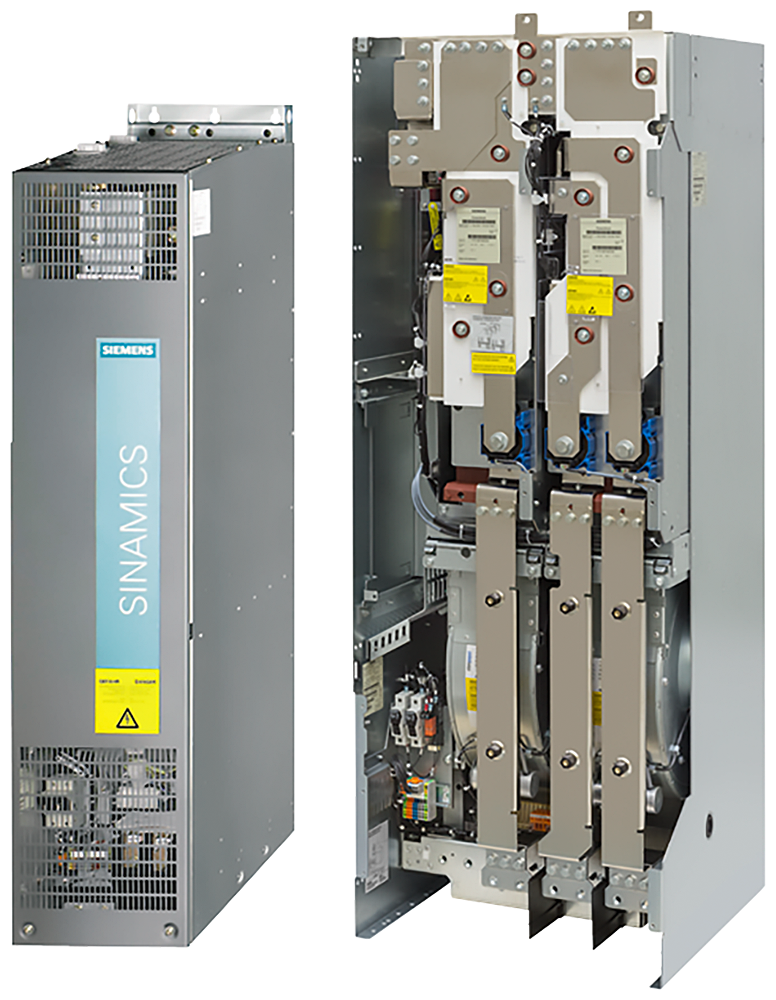

Siemens 6SL3310-1GE35-0AA3 SINAMICS G130 Power Module 490A 250kW VFD Power Module

The Siemens SINAMICS G130 6SL3310-1GE35-0AA3 is a 380-480 V three-phase, IP20 power module rated 490 A / 250 kW, configured as a 6-pulse supply without power recovery. It includes the CIM and Drive-CLiQ cable but ships without a control module, so it requires a separate control unit and matching motor cabling before it can be commissioned to drive a load.

Technical Specifications

Selection Notes

At 490 A / 250 kW this covers a mid-range motor load in the G130 lineup; step up to a higher-current frame if the connected motor's nameplate current exceeds 490 A, or down to a lower-current module for smaller loads rather than running this one under-utilized. As with the rest of the G130 power-module range, it needs its own control unit and Drive-CLiQ wiring since no control module ships with it. The 6-pulse, non-power-recovery design dissipates braking energy rather than returning it to the line, so plan for a braking resistor on duty cycles with frequent deceleration.

Applications

Sized for 380-480 V three-phase induction motors up to roughly 250 kW, covering mid-size pumps, compressors, fans, and extruders built into SINAMICS G130 cabinet drives where a dedicated control room supplies the 380-480 V, 3 AC feed.
