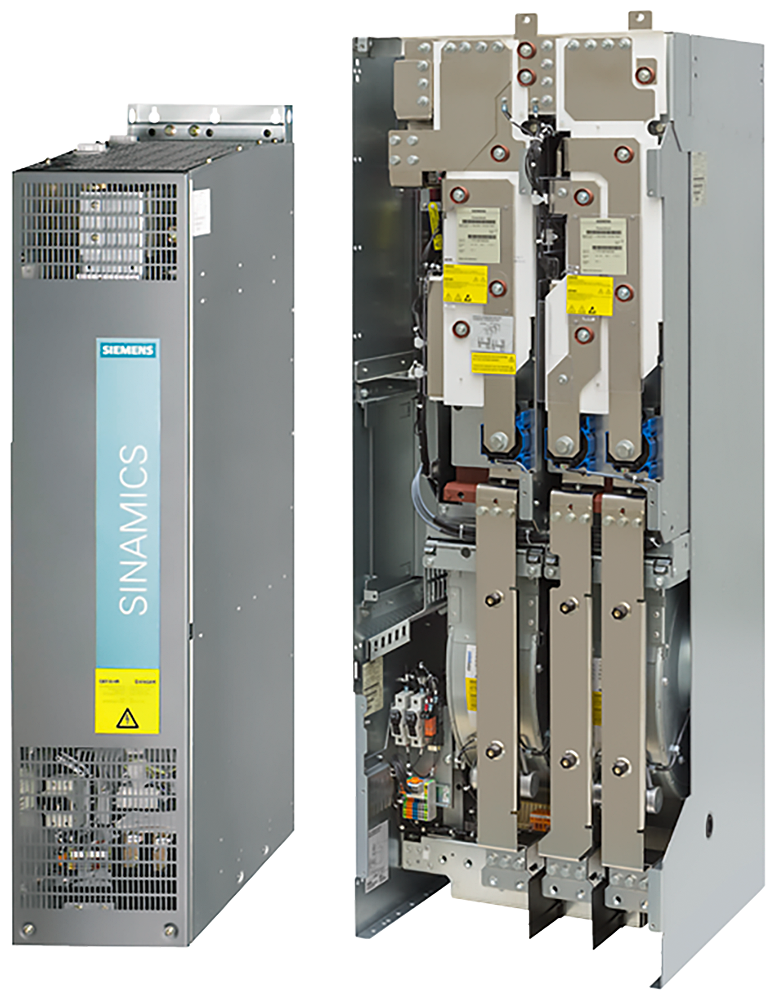

Siemens 6SL3310-1GE33-1AA3 SINAMICS G130 Power Module 310A 160kW VFD Power Module

The Siemens SINAMICS G130 6SL3310-1GE33-1AA3 is a 380-480 V three-phase, IP20 power module rated 310 A / 160 kW, built as a 6-pulse supply without power recovery. It includes the CIM and Drive-CLiQ cable but ships without a control module, so it needs a separate control unit to run a motor.

Technical Specifications

Selection Notes

At 310 A / 160 kW this sits at the lower end of the G130 power range covered here; pick a higher-current frame in the same series when the motor's rated current exceeds 310 A rather than running this module into continuous overload. Because it ships without a control module, budget for a CU320-2 (or compatible) control unit and the associated Drive-CLiQ wiring alongside it, the power module alone doesn't run a motor. The 6-pulse, non-power-recovery design also means braking energy is dissipated rather than fed back to the line, so a braking module or resistor is worth budgeting for on applications with frequent deceleration.

Applications

Used as the power stage of a SINAMICS G130 cabinet drive for pumps, fans, compressors, and other 380-480 V three-phase induction-motor loads up to roughly 160 kW, in panel-mounted cabinet builds rather than wall-mounted VFD enclosures.
