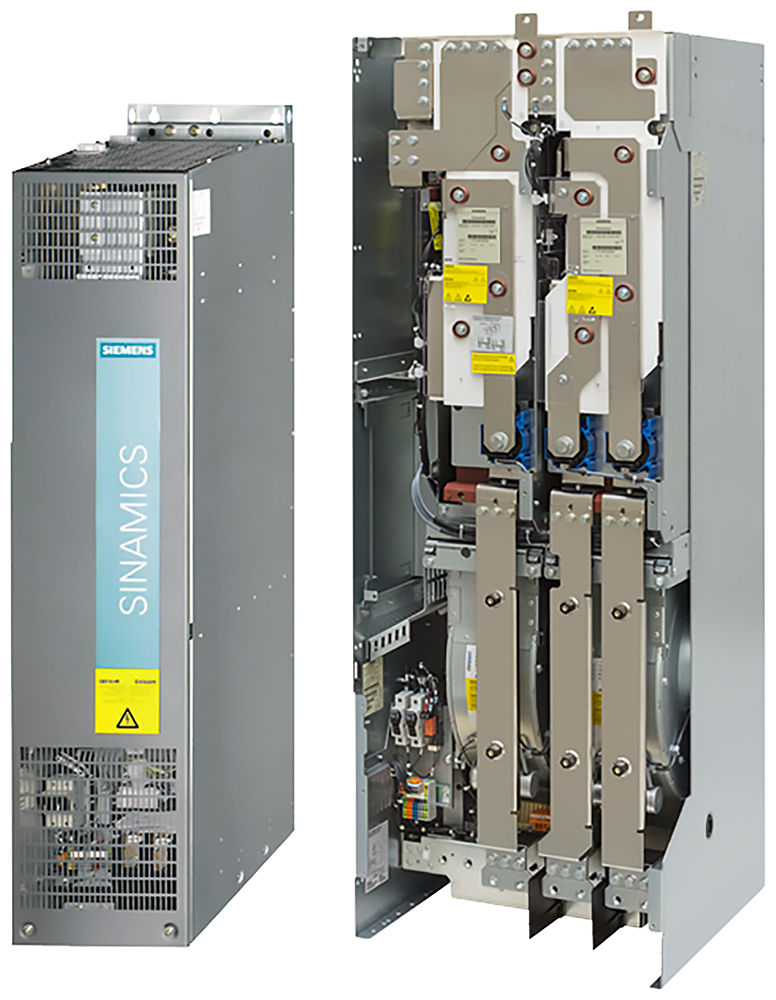

Siemens 6SL3310-1GE32-6AA3 SINAMICS G130 CIM 380-480V 3AC 260A 132kW VFD Power Module

The Siemens 6SL3310-1GE32-6AA3 is a SINAMICS G130 power module in CIM design, rated 260 A at 380-480V 3AC, 50/60 Hz, for a 132 kW type rating. It uses a 6-pulse supply without power recovery and includes a Drive-CLiQ cable; the control module is ordered separately. IP20 protection degree, 104.0 kg net weight, manufactured in Germany.

Technical Specifications

Selection Notes

At 260 A / 132 kW, this sits between the 210 A and 380 A modules in this 380-480V G130 CIM line, sharing the 104.0 kg weight of the 210 A unit despite the higher rating. Choose it when the motor's rated current falls between 210 A and 380 A; the 6-pulse, non-regenerative supply means braking energy must be dissipated through a braking module or resistor rather than fed back to the line. Because the control module is a separate order item, pair this power module with a compatible Control Unit sized for the same current class before commissioning.
