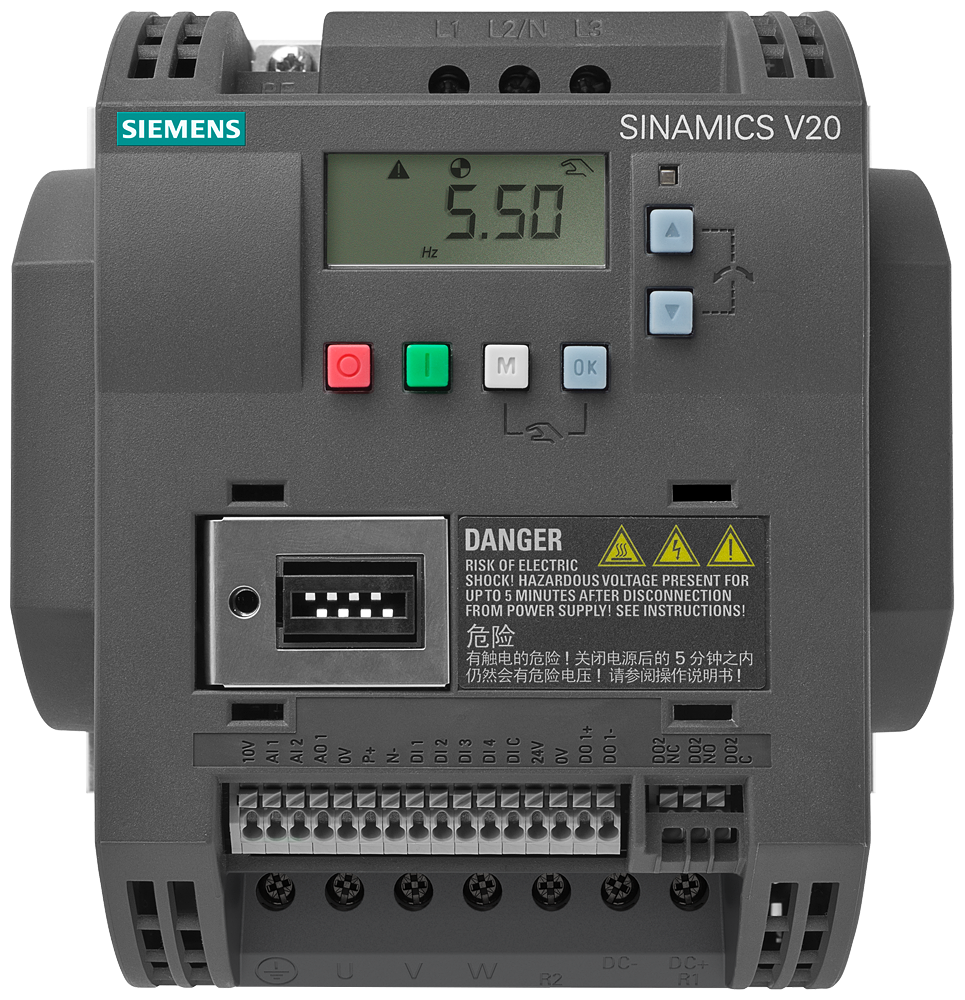

Siemens 6SL3210-5BE27-5UV0 SINAMICS V20 380-480V 7.5kW 16.5A Variable Frequency Drive

The Siemens 6SL3210-5BE27-5UV0 is a SINAMICS V20 variable frequency drive rated 7.5 kW at 380-480 V three-phase AC input, with 16.5 A rated output current and 150% overload capacity for 60 seconds. It integrates a braking chopper, 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output, and USS/Modbus RTU fieldbus with a built-in BOP.

Technical Specifications

Selection Notes

This is the unfiltered variant, so it has no built-in EMC filter - add an external filter if the installation needs to meet EN 61800-3 Category C2 conducted-emission limits, or choose the filtered variant instead where filtering must fit in the same enclosure. The 150% overload rating for 60 seconds covers momentary load spikes such as pump startup or conveyor jams without derating the continuous 16.5 A rating, and the integrated braking chopper avoids a separate braking module for regenerative loads such as overhauling loads or fast deceleration ramps.

Applications

Pump and fan speed control, conveyor drives, and general-purpose motor speed control using USS or Modbus RTU on machines that don't need PROFIBUS, plus retrofits needing a compact IP20 panel-mount drive.
