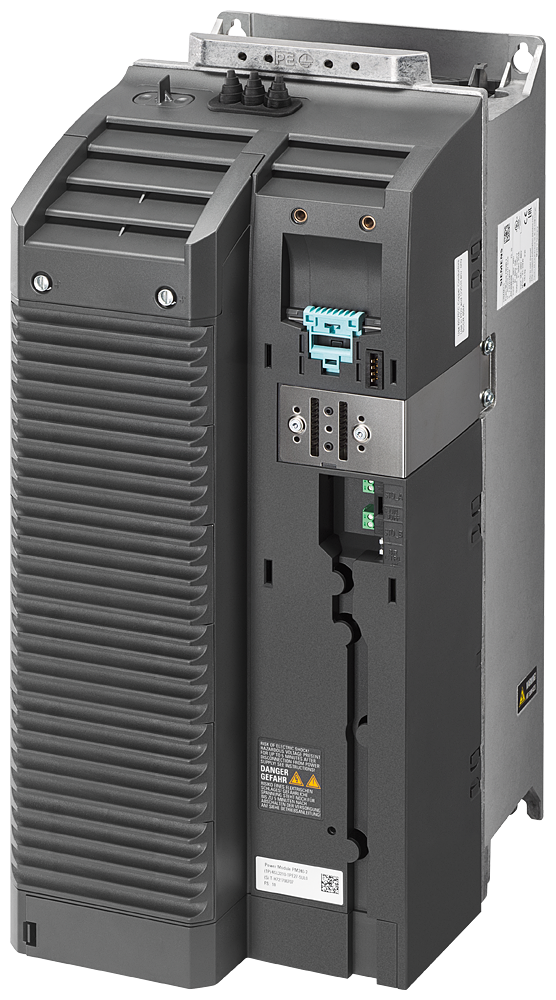

Siemens 6SL3210-1PH22-0UL0 SINAMICS G120 PM240-2 11kW/15kW 500-690V VFD Power Module

The Siemens 6SL3210-1PH22-0UL0 is a SINAMICS G120 PM240-2 power module for 3AC 500-690V supply, rated 11.00 kW at high overload and 15.00 kW at low overload in the FSD frame. It has an integrated braking chopper, ships unfiltered and without a control unit or operator panel, and is approved from CU firmware V4.7 HF8. Net weight is 17.4 kg with IP20 protection in the same 472 x 200 x 237 mm FSD enclosure used across this power step.

Technical Specifications

Selection Notes

Between the 7.50 kW and 18.50 kW FSD variants, this 11.00 kW / 15.00 kW step covers motors that outgrow the smallest FSD module without moving up to the larger FSE frame. Max. output current of 29.00 A gives roughly 50% headroom above the 19.00 A rated output current, which is the margin the drive uses to ride through the 200% / 3 s overload window rather than trip. The braking chopper is built in, so occasional regenerative loads do not need a separate braking module in this frame size.
