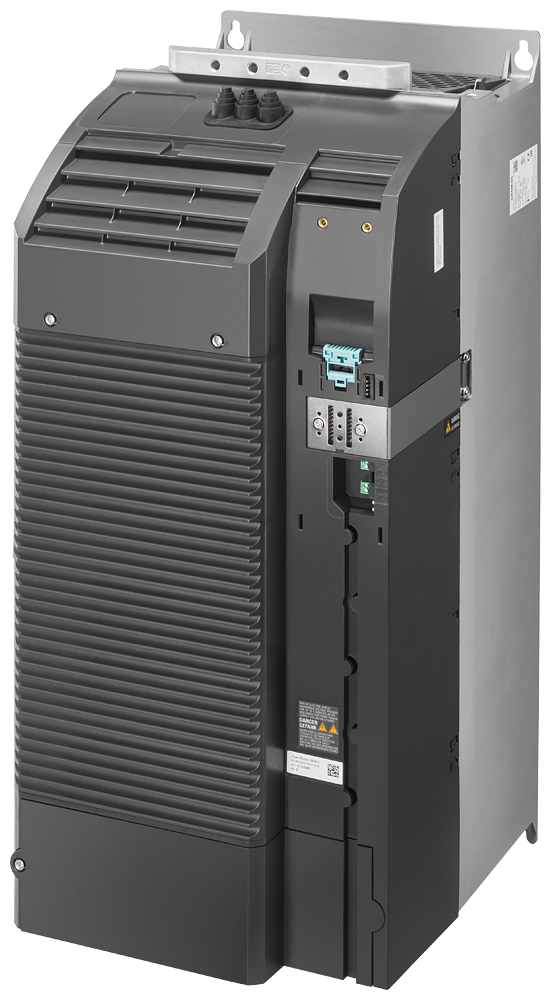

Siemens 6SL3210-1PE31-5UL0 SINAMICS G120 PM240-2 Power Module 75kW IP20 VFD Power Module

The Siemens 6SL3210-1PE31-5UL0 is a SINAMICS G120 PM240-2 power module rated 75.00 kW (low overload) or 55.00 kW (high overload) on a 3AC 380-480V supply, with a built-in braking chopper and IP20 protection in frame size FSF. It runs without a filter and requires a separate Control Unit and operator panel.

Technical Specifications

Selection Notes

The low-overload rating of 75.00 kW (140.00 A) covers loads such as pumps and fans that run near continuous full load, while the high-overload rating of 55.00 kW (117.00 A) is the figure to check for applications with 150% overload spikes for 57 s, such as conveyors or extruders. The 220.00 A max. output current sets the ceiling for short-duration current spikes on either rating. This module ships without a filter and needs a Control Unit and operator panel added separately, so it fits builds that reuse an existing CU or want to select filter class independently. Frame size FSF and IP20 protection mean it belongs inside a cabinet, not on an open panel.

Applications

Pumps, fans, conveyors, and extruders in the 55-75 kW range on a 380-480 V supply, built up as a modular SINAMICS G120 drive with a separately ordered Control Unit and BOP/IOP operator panel, inside a ventilated IP20-rated enclosure.
