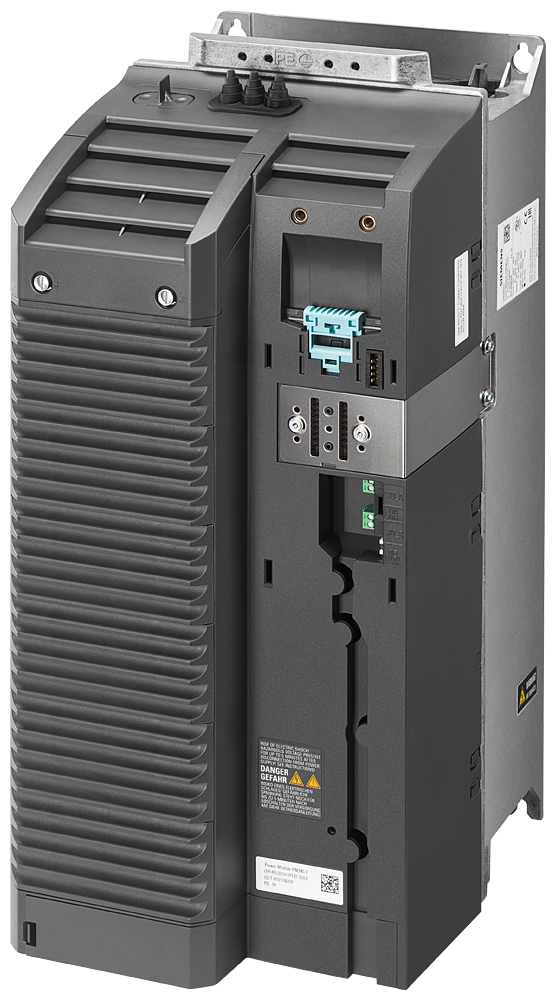

Siemens 6SL3210-1PE27-5UL0 SINAMICS G120 PM240-2 400V 37kW IP20 VFD Power Module

The Siemens SINAMICS G120 PM240-2 power module 6SL3210-1PE27-5UL0 delivers 37 kW low-overload and 30 kW high-overload output at 400 V 3AC, with a built-in braking chopper and an IP20 frame size FSD enclosure. It pairs with a separate control unit to form a modular G120 drive, rated for a 380-480 V line supply at 47-63 Hz.

Technical Specifications

Selection Notes

The LO (low overload) rating of 37 kW covers pump and fan loads that only need 110% overload for 57 s, while the HO (high overload) rating of 30 kW is the figure to size against for conveyor or extrusion loads that need 150% for 3 s. Choose this frame over the lower-current PM240-2 variants in the same series when the driven motor's full-load current exceeds roughly 62 A; the built-in braking chopper removes the need for an external chopper module when a braking resistor is added for fast-stop or overhauling-load applications. The module ships without a control unit, so a CU240 or CU250S-2 control unit and an operator panel must be ordered separately to run the drive.

Applications

Fits general-purpose 30-37 kW induction motor control in modular G120 drive cabinets: pumps, fans, compressors, and conveyors where the plant standardizes on a separate power module plus control unit architecture rather than a single-housing inverter.
