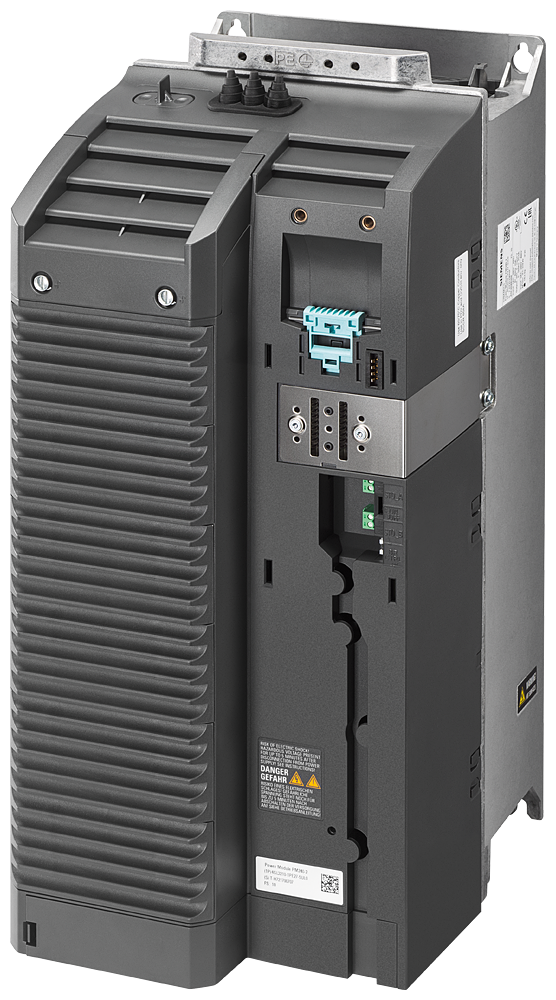

Siemens 6SL3210-1PE26-0UL0 SINAMICS G120 PM240-2 30kW 400V IP20 VFD Power Module

The Siemens 6SL3210-1PE26-0UL0 is a SINAMICS G120 PM240-2 power module rated 30 kW low overload / 22 kW high overload from a 380-480 V three-phase supply. It includes a built-in braking chopper but no line filter, mounts in IP20 frame size D, and pairs with a CU240 control unit to form a complete G120 drive.

Technical Specifications

Selection Notes

This PE26 variant omits the integrated line filter, so an external EMC filter is needed if the installation requires Category C2/C3 conformance - choose the filtered PM240-2 variant instead when there is no panel space for a separate filter. The built-in braking chopper dissipates regenerative energy from decelerating loads without an external braking module, up to the chopper's rated duty. Rated 30 kW at low overload (150% for 3 s) versus 22 kW at high overload (200% for 3 s), it suits centrifugal-load applications like pumps and fans better than high-inertia loads that need the HO rating's higher instantaneous overload margin.

Applications

Motor speed control for pumps, fans, and conveyors on 380-480 V three-phase supplies, paired with a CU240 control unit and, where required, an external EMC filter.
