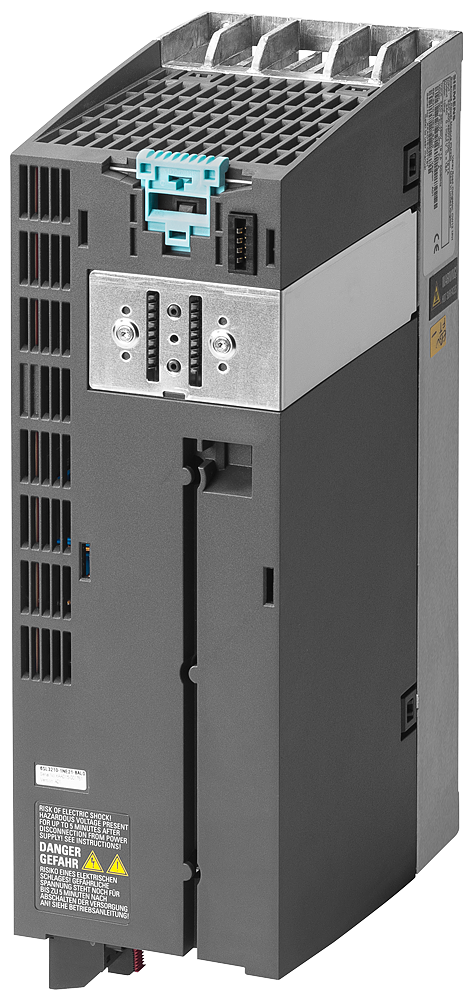

Siemens 6SL3210-1PE22-7UL0 SINAMICS G120 PM240-2 11kW 400V IP20 VFD Power Module

The Siemens 6SL3210-1PE22-7UL0 is a SINAMICS PM240-2 power module rated 11 kW low-overload / 7.5 kW high-overload at 3AC 380-480V, with an integrated braking chopper and an IP20 FSC-frame enclosure. It pairs with a separate SINAMICS G120 control unit, runs on a 47-63 Hz line, and delivers up to 39 A maximum output current for V/f- or vector-controlled loads.

Technical Specifications

Selection Notes

Pick this module by load type: 11 kW low-overload (LO) suits variable-torque duty such as pumps and fans, while 7.5 kW high-overload (HO) suits constant-torque loads needing 150% for 57 s of a cycle. It ships without an EMC filter, so a filter has to be added externally if the installation needs a defined emissions class - the with-filter version of the same PM240-2 frame removes that extra step. The built-in braking chopper accepts a resistor directly, without a separate chopper module.

Applications

Fits SINAMICS G120 assemblies running variable-torque pump and fan loads at 11 kW, or constant-torque conveyor and agitator loads at 7.5 kW, in cabinets that already handle EMC filtering and use a SINAMICS G120 control unit for the fieldbus connection.
