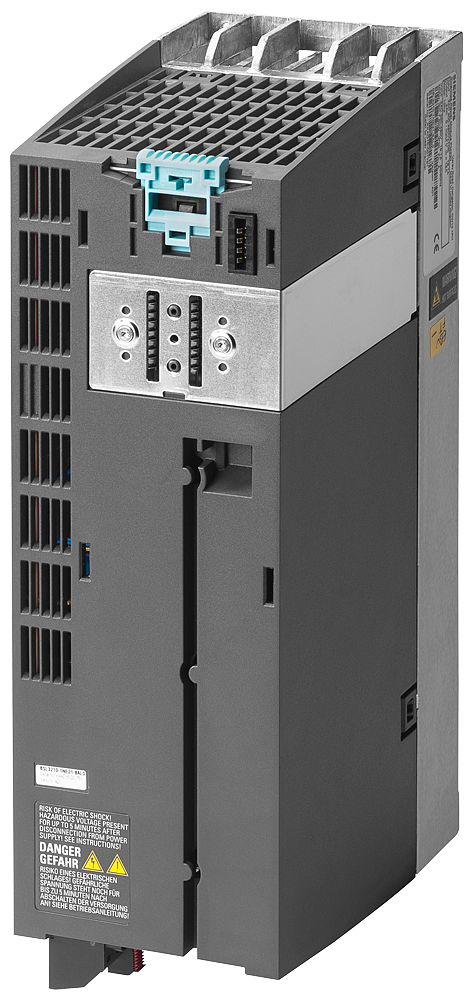

Siemens 6SL3210-1PE12-3UL1 SINAMICS PM240-2 0.75kW 400V IP20 VFD Power Module

The Siemens 6SL3210-1PE12-3UL1 is a SINAMICS PM240-2 power module rated 0.75 kW (low overload) / 0.55 kW (high overload) at 400 V, built for 380-480 V 3AC ±10% supply at 47-63 Hz. Frame size FSA carries an integrated braking chopper and IP20 protection without the Control Unit, and it needs CU firmware V4.6 or later to operate.

Technical Specifications

Selection Notes

This is the 0.75 kW low-overload / 0.55 kW high-overload FSA frame variant — pick the low-overload rating for pumps and fans with light, continuous loads, and treat the high-overload figure as the ceiling for applications with overload spikes such as conveyors or mixers. The unfiltered designation means an external EMC filter is needed if the installation requires Class A or B conducted-emission compliance; the integrated braking chopper lets a braking resistor be added directly at this power module without a separate chopper module. IP20 protection applies only without the Control Unit and operator panel fitted, so mount it inside an enclosed cabinet.

Applications

Single-axis pump, fan, and conveyor drives on the SINAMICS G120 modular platform where a separate Control Unit provides PROFINET/PROFIBUS control of the power stage.
