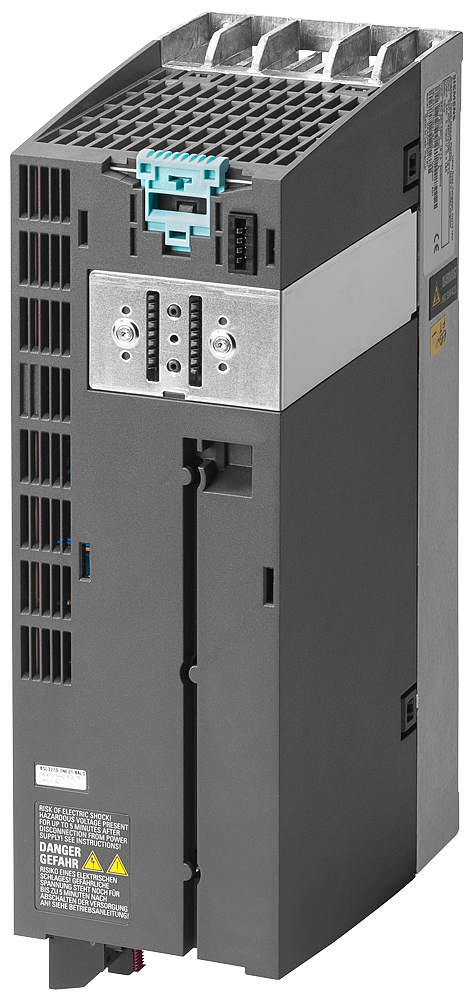

Siemens 6SL3210-1PE11-8UL1 SINAMICS PM240-2 0.55kW 400V IP20 VFD Power Module

The Siemens 6SL3210-1PE11-8UL1 is a SINAMICS PM240-2 power module rated 0.55 kW in Low Overload mode and 0.37 kW in High Overload mode, for 380-480 V 3 AC input, frame size FSA, IP20 without Control Unit. It has an integrated braking chopper, is unfiltered for EMC, and is released from CU firmware version V4.6 for use with a compatible SINAMICS Control Unit to form a modular G120 drive.

Technical Specifications

Selection Notes

Low Overload (LO) mode gives the higher continuous rating, 0.55 kW at 150% overload for 57 s, and suits variable-torque loads such as pumps and fans; High Overload (HO) mode drops continuous power to 0.37 kW but allows 200% for 3 s, which fits constant-torque loads with load spikes such as conveyors. Choose the next higher power rating in frame size FSA when the application's continuous current exceeds this module's 1.70 A / 1.30 A output rating, and choose the filtered variant instead of this unfiltered one where EN 61800-3 conducted-emission limits must be met at the drive terminals.

Applications

Speed control of small three-phase asynchronous or synchronous-reluctance motors in modular SINAMICS G120 drives, paired with a matching SINAMICS Control Unit, for pumps, fans, and light conveyors on a 380-480 V 3 AC supply.
