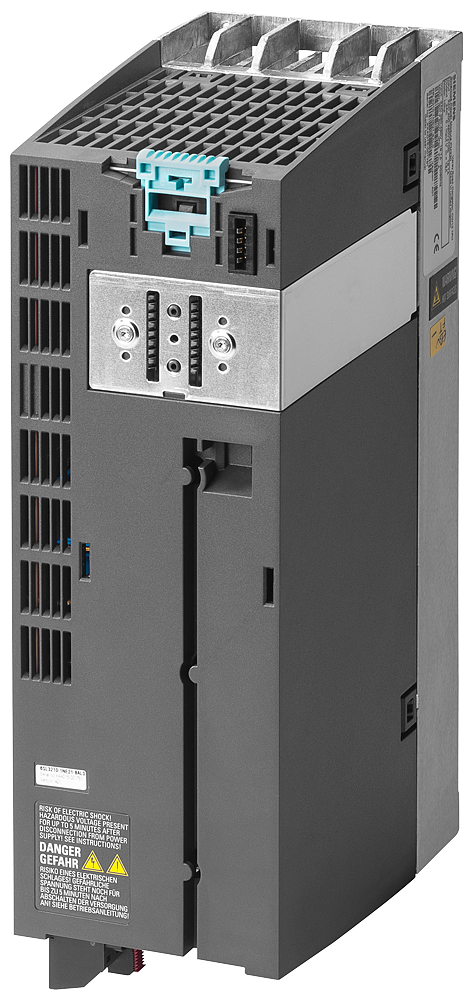

Siemens 6SL3210-1PB15-5UL0 SINAMICS G120 PM240-2 FSB 1.1kW 230V VFD Power Module

The Siemens 6SL3210-1PB15-5UL0 is a SINAMICS G120 Power Module PM240-2 in FSB frame, rated 1.1kW low overload / 0.75kW high overload at 200-240V 1/3AC input, with an integrated braking chopper. Output current reaches 9.00A max at a 4kHz pulse frequency, unfiltered and rated IP20 without Control Unit or operating unit.

Technical Specifications

Selection Notes

This FSB-frame PM240-2 covers the 1.1kW (LO) / 0.75kW (HO) power point, one step up from the FSA frame's 0.75kW / 0.55kW rating, with a 6.00A rated LO current and a 9.00A maximum output current for loads with occasional overload peaks. The built-in braking chopper lets a braking resistor connect directly without a separate module, and because the module is unfiltered, an external EMC filter is needed where conducted-emission limits apply. Larger power points in the same PM240-2 family continue into the FSC frame and beyond.

Applications

Used as the power stage of a SINAMICS G120 modular drive together with a matching Control Unit for pumps, fans, and conveyor motors on a 200-240V supply. Requires Control Unit firmware V4.6 or later; rated for -10 to 40C at low overload and -10 to 50C at high overload.
