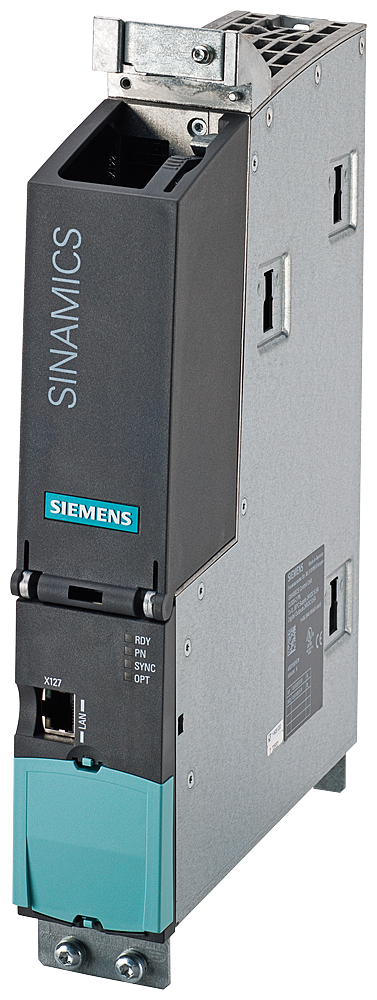

Siemens 6SL3040-1MA01-0AA0 SINAMICS CU320-2 PN Control Unit 4x DRIVE-CLiQ Drive Control Unit

The Siemens 6SL3040-1MA01-0AA0 SINAMICS CU320-2 PN is a modular drive Control Unit with an integrated PROFINET interface, 4 DRIVE-CLiQ ports, and 12 digital inputs/outputs rated 24 V DC. It ships without a CompactFlash card, runs on 24 V DC electronics supply (20.4-28.8 V), and dissipates up to 24 W, with an M5 PE ground connection and up to 20 A external protection recommended.

Technical Specifications

Selection Notes

This is the PN (PROFINET) variant of the CU320-2 Control Unit, sold without a CompactFlash card - a card must be ordered separately before commissioning since firmware and parameters live on it, not the module itself. The 4 DRIVE-CLiQ ports set the upper limit on how many Motor Modules, Power Modules, or CX-series controller extensions can attach directly; a CX32-2 extension is the usual route to add axes beyond that limit. 12 onboard digital I/O let simple interlocks and status signals connect without a separate remote I/O station on smaller SINAMICS S120 configurations.

Applications

Central controller for modular SINAMICS S120 drive systems networked over PROFINET - machine tools, printing, and material-handling drive lines that need coordinated multi-axis motion beyond what a single controller extension would support.
