Siemens 6SL3040-0JA00-0AA0 SINAMICS S110 Control Unit CU305 PROFIBUS Drive Control Unit

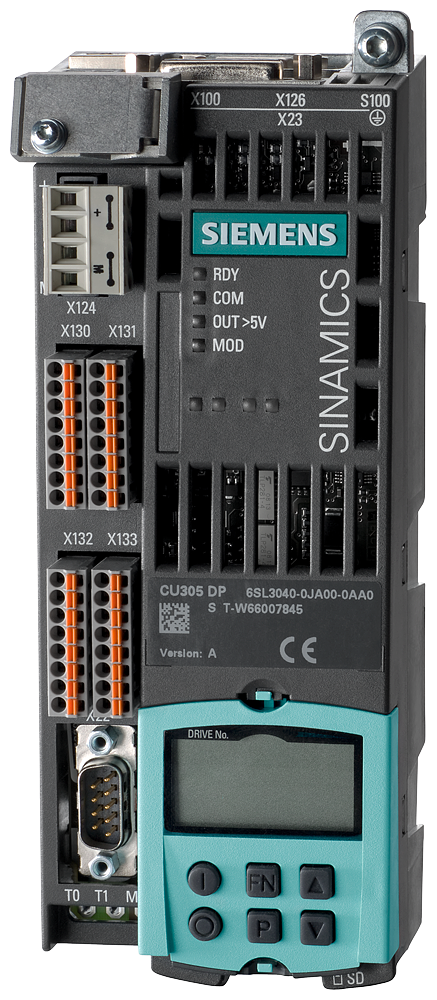

The Siemens 6SL3040-0JA00-0AA0 is the CU305 DP Control Unit for the SINAMICS S110 single-axis drive system, communicating via PROFIBUS interface. It operates from a 24 V DC supply (–15 % / +20 %), draws a maximum of 0.8 A, and supports encoder input frequencies up to 500 kHz — making it suited to closed-loop servo positioning applications with high-resolution feedback.

Technical Specifications

Selection Notes

The 6SL3040-0JA00-0AA0 carries the PROFIBUS DP interface, which distinguishes it from the CU305 PN variant (PROFINET). Choose this unit when the machine network is already PROFIBUS-based or when the PLC master — such as a SIMATIC S7-300/400 with CP 342-5 — uses DP cyclic data exchange for torque/speed setpoints and status words. The 500 kHz encoder input accommodates high-pole-count or high-speed incremental encoders without frequency de-rating, and the SSI interface (100–250 kBaud) allows direct connection of absolute encoders, eliminating a separate encoder evaluation card. At 0.8 A maximum supply draw from the 24 V rail, the unit fits within the current budget of standard SITOP PSU8600 or PSU100S 24 V modules without a dedicated branch circuit.

Applications

The CU305 DP targets single-axis positioning tasks in packaging lines, textile machines, and handling equipment where PROFIBUS is the plant fieldbus. The –10 … 10 V analog input with 12-bit + sign resolution provides a torque or speed reference path for legacy analog masters, giving integrators a migration route alongside the digital PROFIBUS channel. The continuous short-circuit protection on the digital inputs reduces wiring-fault risk during commissioning without requiring external current-limiting resistors.
