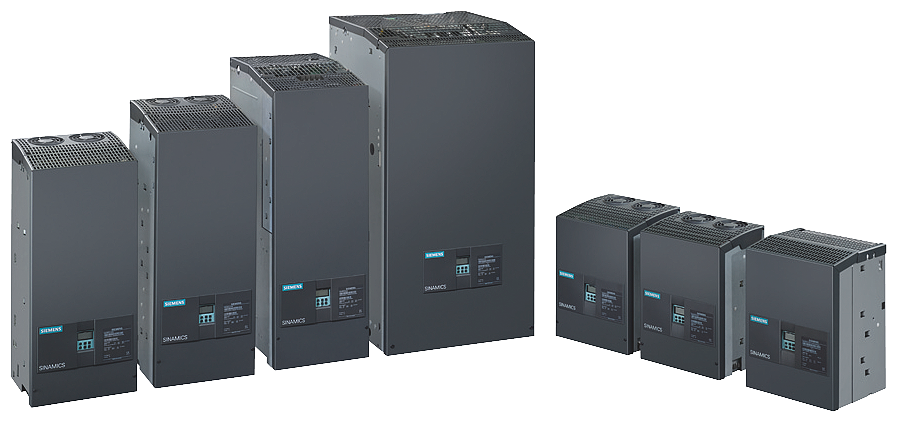

Siemens 6RA8087-6DV62-0AA0 SINAMICS DCM Four-Quadrant DC Converter 400V AC 706A / 420V DC 850A

% $-24,340.70
Siemens 6RA8087-6DV62-0AA0 SINAMICS DCM Four-Quadrant DC Converter - 420V DC 850A
Siemens 6RA8087-6DV62-0AA0 SINAMICS DCM Four-Quadrant DC Converter - 420V DC 850A

Siemens 6RA8087-6DV62-0AA0 SINAMICS DCM Four-Quadrant DC Converter 400V AC 706A / 420V DC 850A

Brand: Siemens
Reference No: 6RA8087-6DV62-0AA0
Catalog No: 6RA8087-6DV62-0AA0
Series: SINAMICS DCM
Tariff Code (HS): 8504409999
Rated Current: 850A
Rated Voltage: 400V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$24,340.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6RA8087-6DV62-0AA0 is a SINAMICS DCM four-quadrant DC converter for DC drives, rated for 420V DC output at up to 850A from a (B6)A(B6)C anti-parallel thyristor bridge pair. It is supplied from a 400V 3AC line drawing up to 706A and includes field rectifier D420/850 (MREQ-GEGF6V62) for separate field excitation of the DC motor.

Technical Specifications

SKU 6RA8087-6DV62-0AA0
Brand Siemens
Series SINAMICS DCM
Product Type DC Converter
Circuit Configuration Four-Quadrant ((B6)A(B6)C)
Input Voltage 400 V 3AC
Input Current 706 A
Output Voltage 420 V DC
Output Current 850 A
Field Rectifier D420/850 (MREQ-GEGF6V62)
Net Weight 42.0 kg
Country of Origin China

Selection Notes

This unit pairs two anti-parallel (B6)A(B6)C thyristor bridges, so current can reverse direction and the converter can both motor and regenerate across all four torque/speed quadrants. That makes the 6RA8087-6DV62-0AA0 the right choice at 850A output where the load needs regenerative braking or frequent reversal, such as hoists, winders, or reversing mill stands, rather than the two-quadrant variant at the same current rating, which cannot return energy to the line.

Technical Details

Short Description
Siemens SINAMICS DCM four-quadrant DC converter, 400V 3AC 706A in / 420V DC 850A out, (B6)A(B6)C bridge.
Rated Current (Ampere)
850A
Rated Voltage (VAC)
400V
Catalog No
6RA8087-6DV62-0AA0
Delivery Date (Days)
10-15 days
Model Number
6RA8087-6DV62-0AA0
Tariff Code
8504409999
