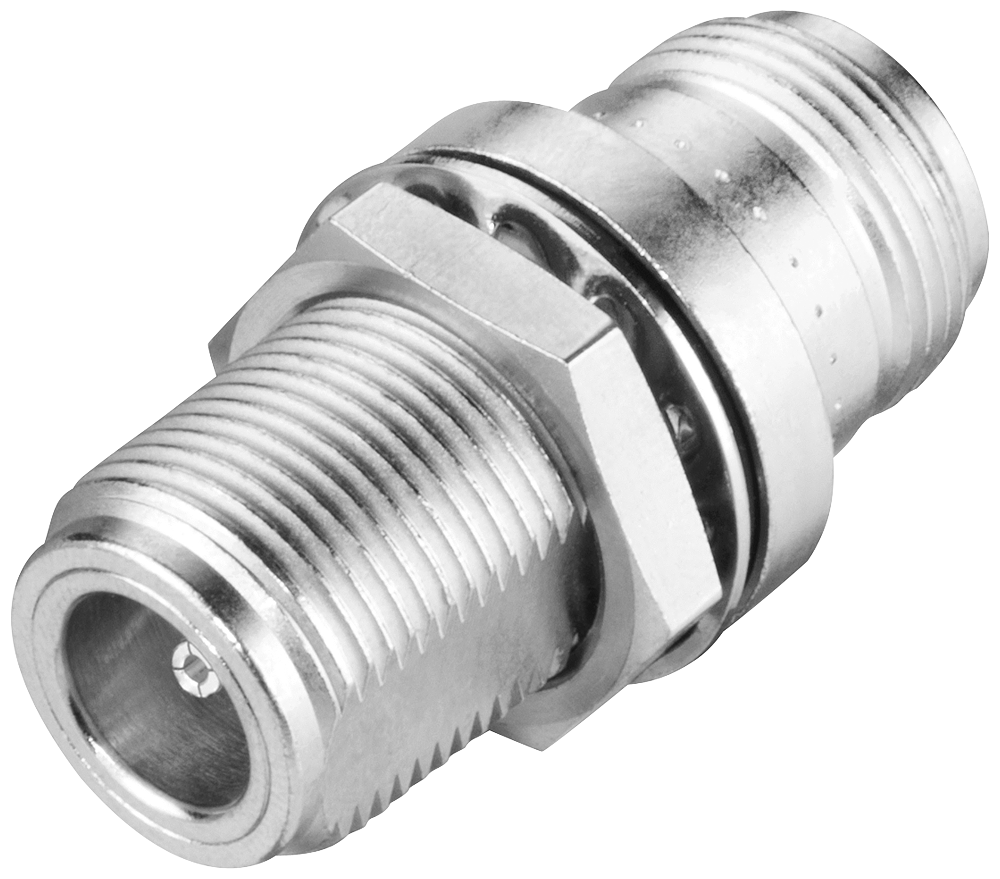

Siemens 6GK5798-2PP00-2AA6 SCALANCE W N/N Female Panel Feedthrough Cabinet Bushing Connector

% $-19.64
Siemens 6GK5798-2PP00-2AA6 N/N panel feedthrough - IWLAN cabinet bushing connector
Siemens 6GK5798-2PP00-2AA6 N/N panel feedthrough - IWLAN cabinet bushing connector

Siemens 6GK5798-2PP00-2AA6 SCALANCE W N/N Female Panel Feedthrough Cabinet Bushing Connector

Brand: Siemens
Reference No: 6GK5798-2PP00-2AA6
Catalog No: 6GK5798-2PP00-2AA6
Series: SCALANCE W
Tariff Code (HS): 85366910
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$19.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5798-2PP00-2AA6 is an N-Connect female/female panel feedthrough that passes a 2.4/5 GHz IWLAN antenna cable through a cabinet or enclosure wall up to 4.5 mm thick, keeping the seal intact where the cable crosses from inside a control panel to an outdoor-mounted antenna. It covers 0-11 GHz at 50 ohm impedance and holds an IP68 rating once both connectors are plugged in.

Technical Specifications

SKU 6GK5798-2PP00-2AA6
Brand Siemens
Series SCALANCE W
Product type designation IWLAN panel feedthrough N-Connect female/female
EAN 4019169854450
Electrical connections 2
Connector type N-Connect female / N-Connect female
Transmission frequency 0-11 GHz
Impedance 50 ohm
Maximum wall thickness 4.5 mm
Ambient temperature, operation -30 to +100 C
Ambient temperature, storage -30 to +100 C
Ambient temperature, transport -30 to +100 C
Protection class IP68, when plugged in
Diameter 20.7 mm
Length 38 mm
Net weight 55 g

Certifications & Standards

  • RoHS

Selection Notes

Both sides are N-Connect female, so this feedthrough mates two male-terminated cables through the enclosure wall rather than connecting directly to an antenna or radio port. The 4.5 mm maximum wall thickness sets the cabinet or panel gauge it fits, and the IP68 rating only holds once both connectors are seated - it is not sealed with either side left open.

Technical Details

Short Description
N-Connect female/female panel feedthrough, cabinet bushing, 0-11 GHz, IP68 when plugged in
Mounting Type
Panel/cabinet wall feedthrough, max 4.5 mm
Protection Type
IP68, when plugged in
Catalog No
6GK5798-2PP00-2AA6
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6GK5798-2PP00-2AA6
Tariff Code
85366910
