Siemens 6FX3002-5CK01-1AF0 MOTION-CONNECT 300 Power Cable 5m for SINAMICS V90 Servo Cable

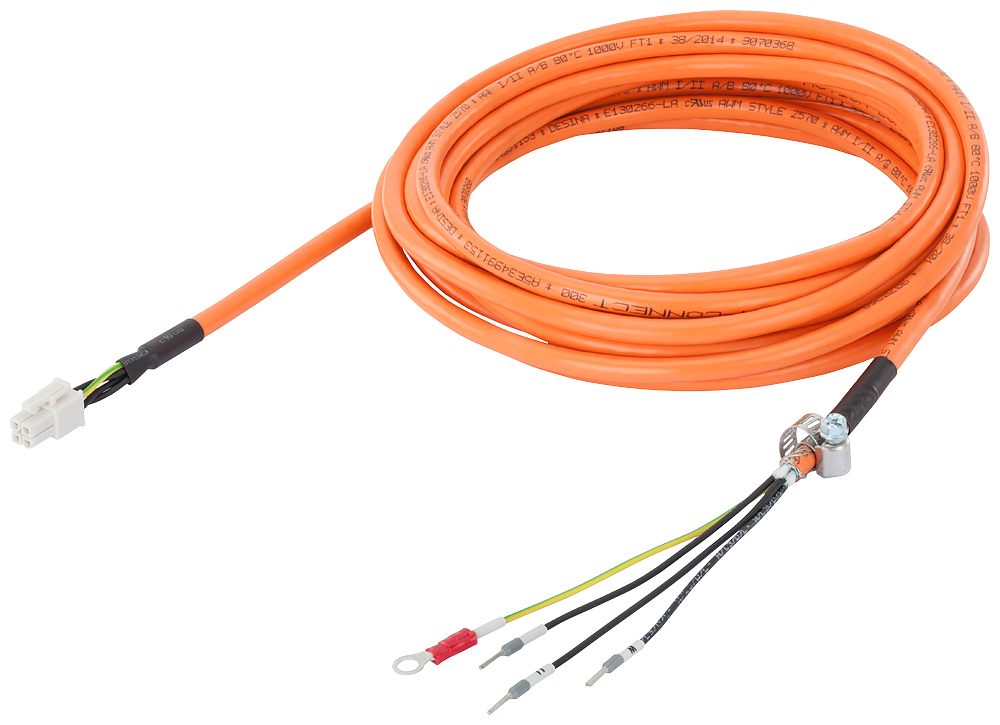

Siemens 6FX3002-5CK01-1AF0 is a pre-assembled MOTION-CONNECT 300 power cable with a 4 x 0.75 mm2 conductor cross-section, supplied in a fixed 5 m length. It connects a SIMOTICS S-1FL6 servo motor to a SINAMICS V90 230 V drive in frame sizes A, B, C, or D (1 kW), with UL/CSA-rated construction and a maximum outer diameter of 7.1 mm.

Technical Specifications

Selection Notes

This is the 5 m length in the MOTION-CONNECT 300 pre-assembled cable family for the SINAMICS V90/SIMOTICS S-1FL6 pairing - pick a shorter length if the drive and motor are cabinet-mounted close together, since a fixed pre-assembled cable cannot be field-cut without voiding the connector assembly. The 7.1 mm max diameter and UL/CSA rating make it suitable for machines built to North American panel standards.

Applications

Used to wire SIMOTICS S-1FL6 servo motors to SINAMICS V90 drives on machine tools and packaging equipment already engineered around the MOTION-CONNECT 300 cable system.
