Siemens 6ES7924-0BD20-0BA0 SIMATIC TOP Connect TPRO 8x Relay 230VAC/3A PLC Connection Module

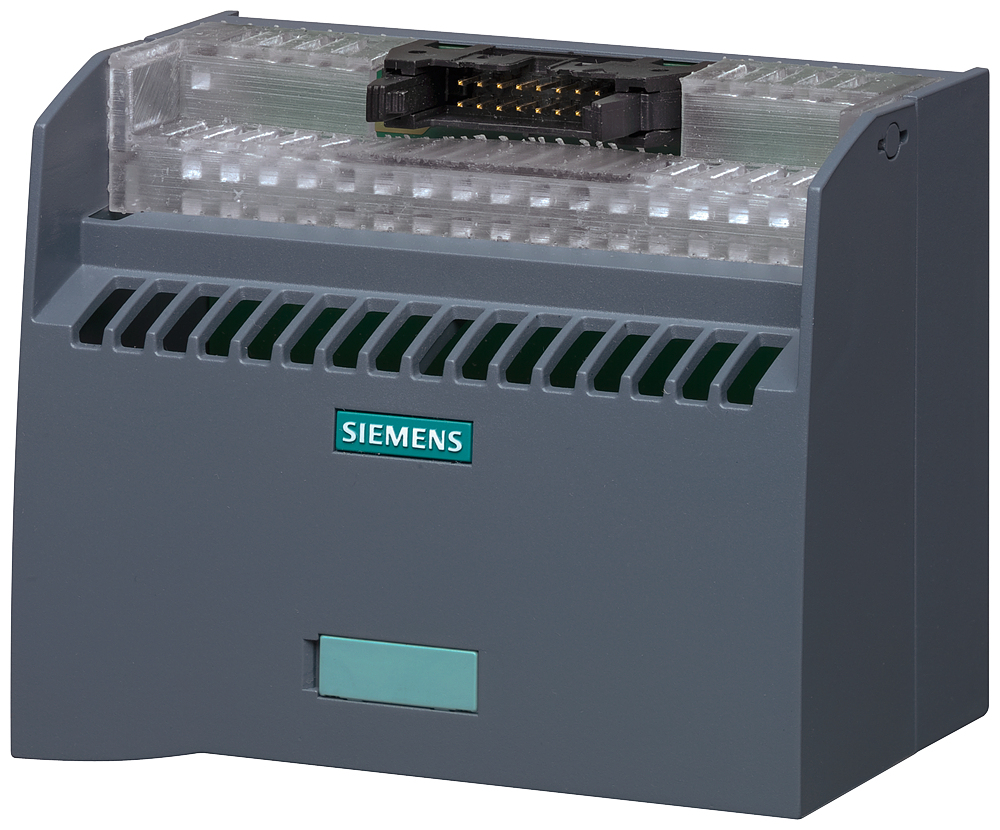

The Siemens SIMATIC TOP connect 6ES7924-0BD20-0BA0 is a TPRO relay connection module with 8 normally-open relay outputs switching up to 230 V AC / 3 A or 30 V DC / 3 A per contact, screw terminals, and status LEDs. It links S7-300/S7-1500 digital output signals to field loads through potential-isolated relay contacts via a 16-pole IDC front cable, and mounts on a 35 mm or 15 mm DIN rail.

Technical Specifications

Certifications & Standards

• cULus
• EPD

Selection Notes

This TPRO variant switches loads through 8 relay contacts rather than solid-state transistor outputs, so it isolates the S7 output circuit from the field load and can switch AC loads (230 V AC / 3 A) that a transistor output module cannot - pick it when field devices are AC-powered or need galvanic isolation from the PLC's DC output circuit. The rated 3,000,000 mechanical / 50,000 electrical (at 230 V AC/4 A) operating cycle life is the limiting factor versus a transistor connection module, so it is not the right choice for high-frequency switching (max. 0.1 operations/s rated). The 16-pole IDC front connection with a 30 m max cable length keeps the TOP connect front-plug wiring separate from the DIN-rail-mounted relay block for fast replacement.

Applications

Interfaces S7-300/S7-1500 digital outputs to AC-powered field loads - contactor coils, solenoid valves, indicator lamps, and pilot devices - where galvanic isolation or AC switching beyond a transistor output's capability is required.
