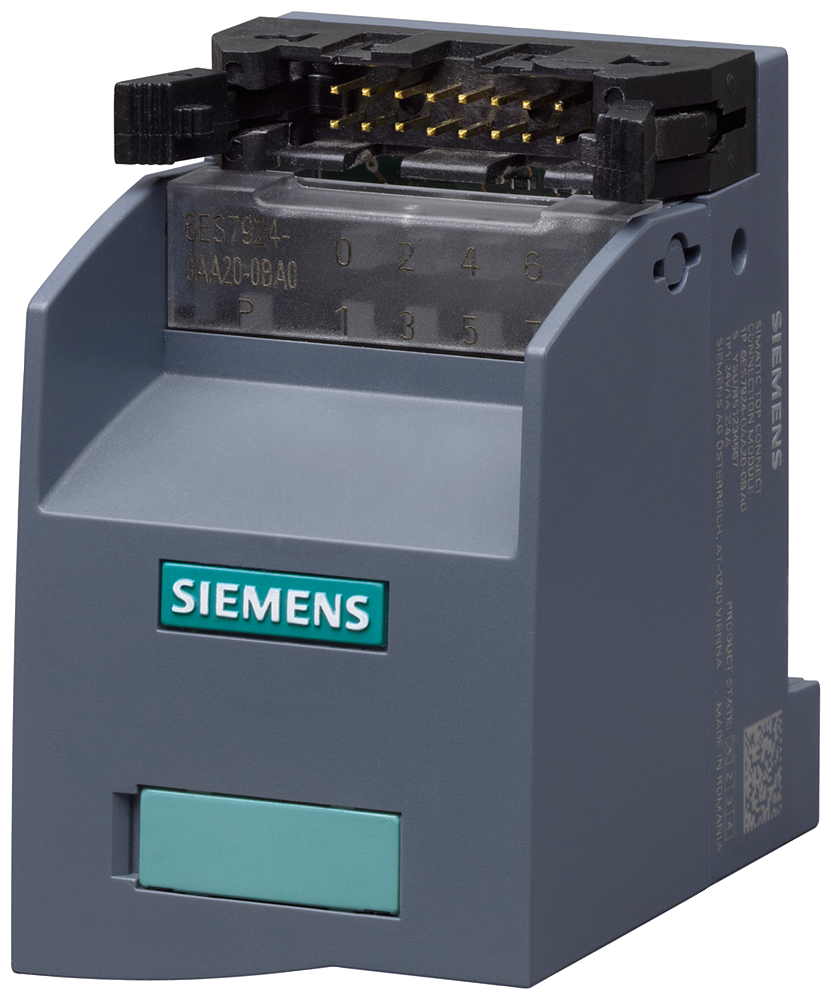

Siemens 6ES7924-0AA20-0BA0 SIMATIC TOP Connect TP1 8-Channel Screw Terminal LED Module

% $-37.21
Siemens 6ES7924-0AA20-0BA0 TP1 Connection Module - 8-Channel Screw Terminal LED 24V DC
Siemens 6ES7924-0AA20-0BA0 TP1 Connection Module - 8-Channel Screw Terminal LED 24V DC

Siemens 6ES7924-0AA20-0BA0 SIMATIC TOP Connect TP1 8-Channel Screw Terminal LED Module

Brand: Siemens
Reference No: 6ES7924-0AA20-0BA0
Catalog No: 6ES7924-0AA20-0BA0
Series: SIMATIC TOP connect
Tariff Code (HS): 85366990
Rated Current: 4 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$37.21

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7924-0AA20-0BA0 is an 8-channel SIMATIC TOP connect TP1 connection module with screw terminals and a status LED, rated 24 V DC (28.8 V maximum) with a 4 A total current limit. It links digital I/O field wiring to a SIMATIC S7-300/1500 front connector module through a 16-pole IDC cable, mounted on a 35 mm DIN rail.

Technical Specifications

SKU 6ES7924-0AA20-0BA0
Brand Siemens
Series SIMATIC TOP connect
EAN 4025515153566
Target System SIMATIC S7-300 / S7-1500
Product Designation Connection module TP1
Suitability for Use Digital I/O modules
Number of Channels 8
Number of Terminals 12 (8 x I/O, 2 x L+, 2 x M)
Terminal Type Screw-type terminal
Signalling LED Yellow per-channel status LED (active-high); green power LED for 24V DC OK
Terminal Position Top
Operating Voltage, DC (rated) 24 V
Operating Voltage (rated) 24 V
Operating Voltage, DC (maximum) 28.8 V
Ampacity per Pin (maximum) 1 A
Continuous Current per Signal Cable, DC (maximum) 1 A
Total Current (maximum) 4 A
Number of Poles, 1st Interface 16 (IDC connector, integrated strain relief)
Maximum Wire Length to Front Connector Module 30 m
Connectable Conductor Cross-Section 0.5 ... 2.5 mm²
Screwdriver Blade Width 3.5 mm
Tightening Torque 0.4 ... 0.5 N·m
Overvoltage Category 2
Degree of Pollution 2
Flammability Class (UL 94) V1
Ambient Temperature, Operation 0 ... 60 °C
Ambient Temperature, Storage -40 ... +70 °C
Dimensions (W x H x D) 40 x 58 x 50 mm
Mounting Type DIN rail 35 mm / DIN rail 15 mm
Net Weight 0.08 kg
Enclosure Color Grey
Country of Origin Romania
HS Code 85366990

Certifications & Standards

  • cULus
  • EPD

Selection Notes

The screw terminals accept 0.5 ... 2.5 mm² conductors torqued to 0.4 ... 0.5 N·m, a wider minimum cross-section than a push-in TP1’s 0.2 mm² floor, useful for heavier field cabling. A yellow LED per channel shows active-high status and a green LED confirms the 24 V DC supply is present, letting a technician verify wiring at the terminal block without a programming tool. Choose a push-in, LED-less TP1 instead where panel space or assembly speed outweighs local diagnostics.

Technical Details

Short Description
Siemens TP1 SIMATIC TOP connect module, 8-channel screw terminals with LED, 24V DC, 4A total current, DIN rail mount.
Rated Current (Ampere)
4 A
Rated Voltage (VAC)
24 V
Mounting Type
DIN rail 35 mm / 15 mm
Catalog No
6ES7924-0AA20-0BA0
Standards
cULus approval, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6ES7924-0AA20-0BA0
Tariff Code
85366990
