Siemens 6ES7923-0BF00-0CB0 SIMATIC TOP Connect Unshielded Connecting Cable 16-Pole 5.0m PLC Connection Module

% $-42.38

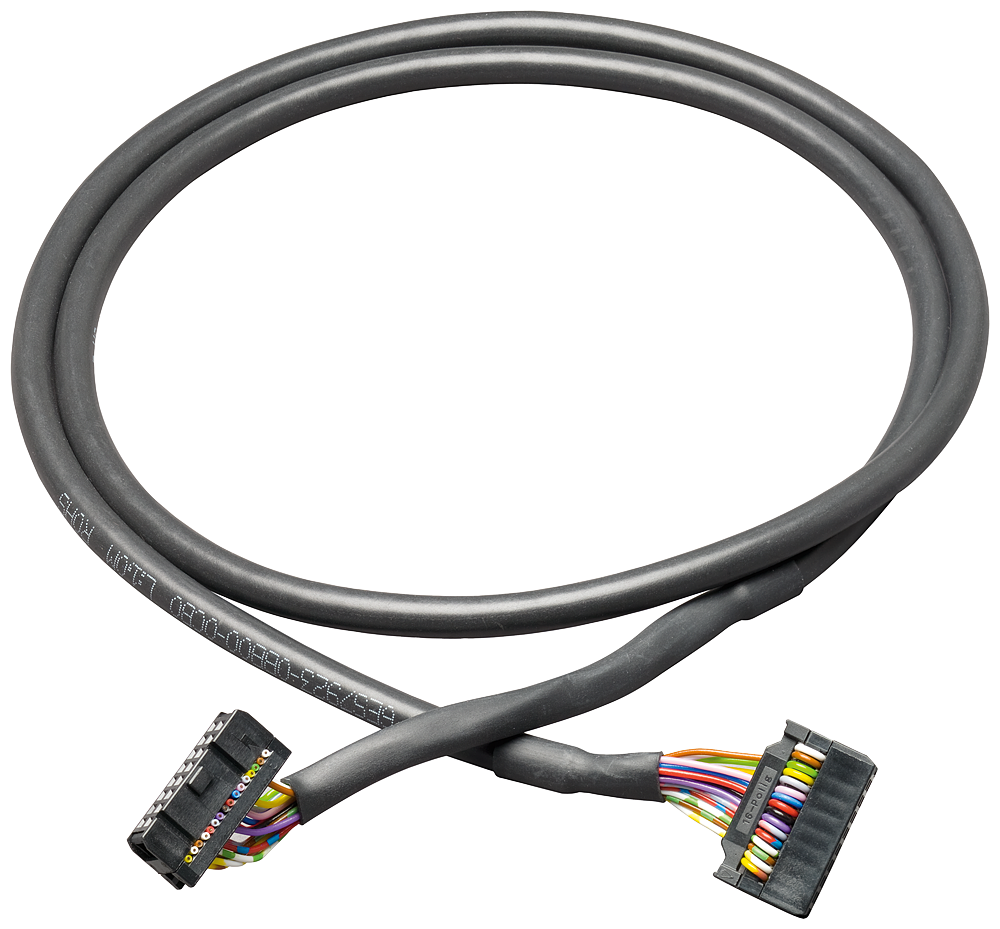

Siemens 6ES7923-0BF00-0CB0 SIMATIC TOP Connect unshielded connecting cable 16-pole 5.0m - PLC connection module
Siemens 6ES7923-0BF00-0CB0 SIMATIC TOP Connect unshielded connecting cable 16-pole 5.0m - PLC connection module

Siemens 6ES7923-0BF00-0CB0 SIMATIC TOP Connect Unshielded Connecting Cable 16-Pole 5.0m PLC Connection Module

Brand: Siemens
Reference No: 6ES7923-0BF00-0CB0
Catalog No: 6ES7923-0BF00-0CB0
Series: SIMATIC TOP connect
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$42.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7923-0BF00-0CB0 is an unshielded, 16-pole pre-assembled round cable in the SIMATIC TOP Connect system, wiring the front connector module to the connection module on SIMATIC S7-300 / 1500 digital I/O stations. It carries 8 digital channels over 0.14 mm² conductors with IDC connectors at both ends, rated 24 V DC (60 V DC maximum), in a 5.0 m length.

Technical Specifications

SKU 6ES7923-0BF00-0CB0
Brand Siemens
Series SIMATIC TOP Connect
EAN 4025515142089
Target System SIMATIC S7-300 / 1500
Product Designation Pre-assembled round cable, fully modular connection
Shielding Unshielded
Signal Transmission Digital I/O modules
Number of Poles 16
Number of Channels 8
Wire Length 5.0 m
Conductor Cross Section 0.14 mm²
Connector Type IDC connector
Interface 1 (Front Connector Module Side) 16-pin
Interface 2 (Connection Module Side) 16-pin
Electrical Connection Type Connector strip (both ends)
Rated Operating Voltage (DC) 24 V
Maximum Operating Voltage (DC) 60 V
Ambient Temperature (Operation) 0 ... 60 °C
Ambient Temperature (Storage) -30 ... +70 °C
Cable Outer Diameter 6.5 mm
Cable Sheath Material PVC
Cable Sheath Color Black
Net Weight 0.35 kg
Country of Origin DE
HS Code 85444290
Environmental Product Declaration Yes (total GWP 4.141 kg CO2 eq)

Selection Notes

This unshielded cable is rated for digital I/O modules only — pick the shielded version in the same family if the front connector module also carries analog channels, since shielding is required there for signal integrity. At 5.0 m, it covers a front-connector-module-to-connection-module run of that distance without the added bulk and weight of the shielded design.

Technical Details

Short Description
Siemens 6ES7923-0BF00-0CB0 - unshielded 16-pole SIMATIC TOP Connect cable, 8-channel, 5.0 m, IDC connectors, front connector to connection module.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-0BF00-0CB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-0BF00-0CB0
Tariff Code
85444290
