Siemens 6ES7923-0BC00-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 2.0m

% $-29.98

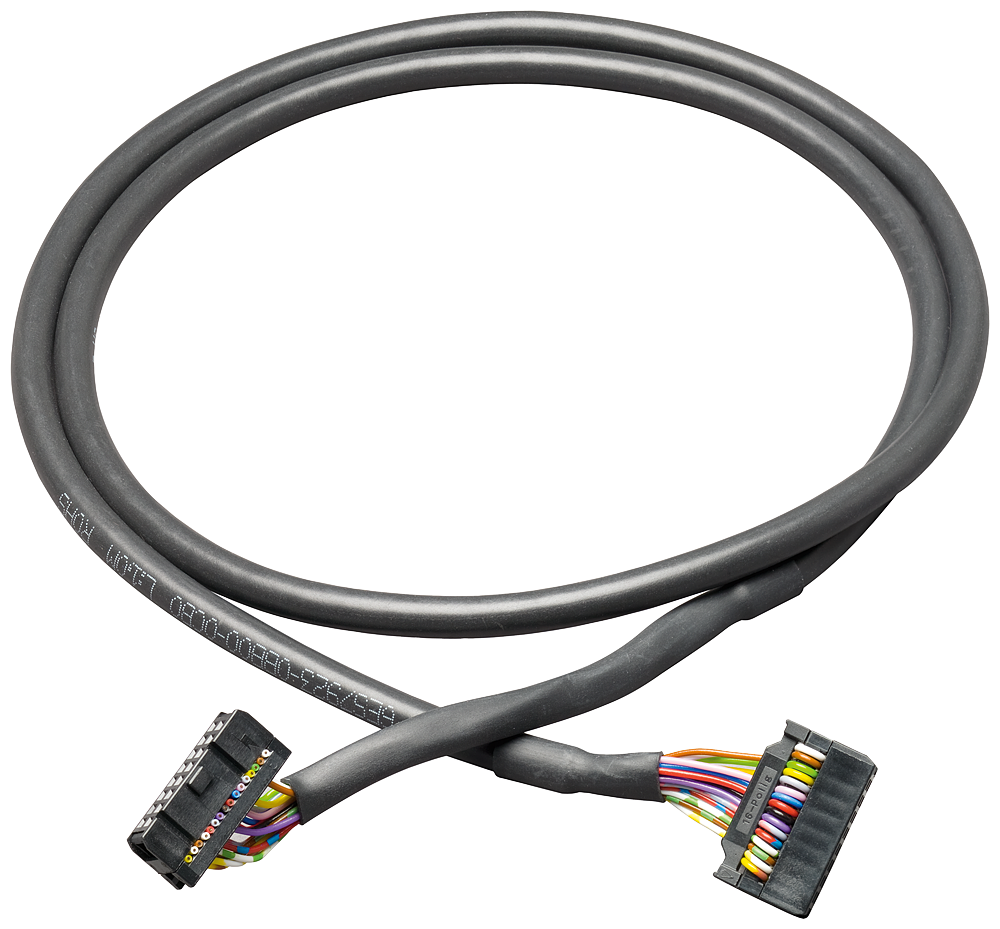

Siemens 6ES7923-0BC00-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 2.0m
Siemens 6ES7923-0BC00-0CB0 TOP Connect Connecting Cable PLC Connection Module - 16-Pin 2.0m

Siemens 6ES7923-0BC00-0CB0 SIMATIC TOP Connect Connecting Cable S7-300/1500 16-Pin 2.0m

Brand: Siemens
Reference No: 6ES7923-0BC00-0CB0
Catalog No: 6ES7923-0BC00-0CB0
Series: SIMATIC TOP connect
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$29.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7923-0BC00-0CB0 is a pre-assembled 16-pin round cable that links the front connector module to the connection module in a SIMATIC S7-300/1500 TOP connect setup. At 2.0 m, unshielded, with 0.14 mm2 conductors and IDC connectors on both ends, it reaches across a cabinet when the connection module is mounted well away from the front connector.

Technical Specifications

SKU 6ES7923-0BC00-0CB0
Brand Siemens
Series SIMATIC TOP connect
Product Designation Pre-Assembled Round Cable
EAN 4025515142041
Target System SIMATIC S7-300 / S7-1500
Suitability Digital I/O modules
Operating Voltage (DC), Rated 24 V
Operating Voltage (DC), Maximum 60 V
Number of Channels 8
Wire Length 2 m
Conductor Cross Section 0.14 mm2
Number of Poles 16
Interface 1 (Front Connector Side) 16-pin
Interface 2 (Connection Module Side) 16-pin
Connector Type IDC connector
Electrical Connection, Enclosure Connector strip
Electrical Connection, Field Connector strip
Cable Design Round cable
Cable Sheath Material PVC
Cable Sheath Color Black
Cable Outer Diameter 6.5 mm
Ambient Temperature, Operation 0 ... 60 degC
Ambient Temperature, Storage -30 ... +70 degC
Net Weight 0.18 kg
Environmental Product Declaration, Total CO2 eq 2.285 kg
Country of Origin Germany

Selection Notes

The 2.0 m length on the 6ES7923-0BC00-0CB0 covers cabinet layouts where the connection module is mounted on a lower panel row or an adjacent enclosure section, beyond what the 1.5 m cable reaches. It is unshielded, matched to connection modules wired for digital signals only; a shielded cable is the right pick when the same module also carries analog channels.

Technical Details

Short Description
TOP connect 16-pin round cable, S7-300/1500, 0.14mm2, IDC connectors, unshielded, 2.0m.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-0BC00-0CB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-0BC00-0CB0
Tariff Code
85444290
