Siemens 6ES7922-5CB00-0HC0 SIMATIC S7-1500 Front Connector 40-Pole 40-Core 10m Halogen-Free

% $-305.96

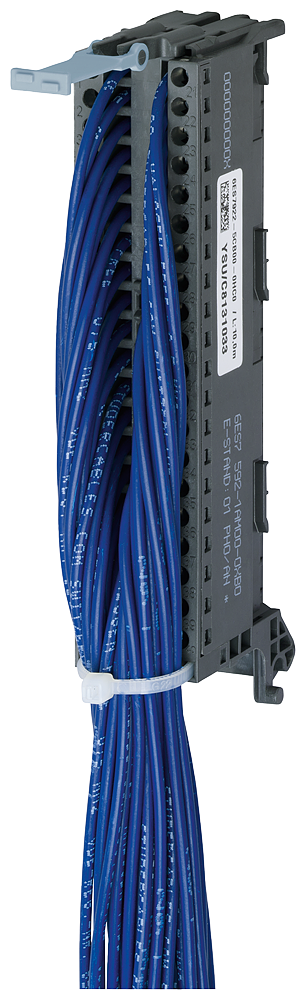

Siemens 6ES7922-5CB00-0HC0 Front Connector PLC Connection Module - 40-Core 10m Halogen-Free
Siemens 6ES7922-5CB00-0HC0 Front Connector PLC Connection Module - 40-Core 10m Halogen-Free

Siemens 6ES7922-5CB00-0HC0 SIMATIC S7-1500 Front Connector 40-Pole 40-Core 10m Halogen-Free

Brand: Siemens
Reference No: 6ES7922-5CB00-0HC0
Catalog No: 6ES7922-5CB00-0HC0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Current: 1.5 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$305.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7922-5CB00-0HC0 is a pre-assembled 40-pole front connector for the SIMATIC S7-1500 with 40 numbered single cores of 0.5 mm2, 10 m long, in halogen-free H05Z-K insulation. All 40 poles carry an individual wire, so it fits digital I/O modules that use every channel rather than the 20-core variant's half-populated layout.

Technical Specifications

SKU 6ES7922-5CB00-0HC0
Brand Siemens
Series SIMATIC S7-1500
Product Designation Front Connector with Single Cores
EAN 4025515153382
Target System SIMATIC S7-1500
Suitability Digital I/O modules
Operating Voltage (DC), Rated 24 V
Operating Voltage (DC), Maximum 30 V
Continuous Current (all cores loaded, DC, max) 1.5 A
Connector Type 6ES7592-1AM00-0XB0
Terminal Type Screw-type terminal
Wire Length 10 m
Number of Channels 40
Number of Poles 40 (front connector)
Core Marking Numbered 1-40, white adapter contact = core number
Cable Design H05Z-K
Cable Sheath Material Polyolefin, halogen-free
Cable Sheath Color Blue (RAL 5010)
Conductor Cross Section 0.5 mm2
Cable Outer Diameter 2.2 mm
Ambient Temperature, Operation 0 ... 60 degC
Ambient Temperature, Storage -15 ... +60 degC
Net Weight 3.94 kg
Country of Origin Romania

Selection Notes

Every one of the 40 front-connector poles carries a numbered core on the 6ES7922-5CB00-0HC0, which suits I/O modules where all channels are wired and none are left as spares. Choosing this version over the 20-core sibling avoids adding a second connector later if the module gets fully populated. The halogen-free H05Z-K sheath applies where cabinet or building codes call for low-smoke, halogen-free cabling.

Technical Details

Short Description
40-pole front connector for SIMATIC S7-1500, 40x0.5mm2 halogen-free cores, 10m, screw version.
Rated Current (Ampere)
1.5 A
Rated Voltage (VAC)
24 V
Mounting Type
Plug-on (replaces module's front connector)
Catalog No
6ES7922-5CB00-0HC0
Delivery Date (Days)
10-15 days
Model Number
6ES7922-5CB00-0HC0
Tariff Code
85444290
