Siemens 6ES7922-5BF00-0HC0 SIMATIC S7-1500 Front Connector 40-Core Halogen-Free 5.0m PLC Connection Module

% $-216.03
Siemens 6ES7922-5BF00-0HC0 SIMATIC S7-1500 Front Connector - 40-Core 5.0m
Siemens 6ES7922-5BF00-0HC0 SIMATIC S7-1500 Front Connector - 40-Core 5.0m

Siemens 6ES7922-5BF00-0HC0 SIMATIC S7-1500 Front Connector 40-Core Halogen-Free 5.0m PLC Connection Module

Brand: Siemens
Reference No: 6ES7922-5BF00-0HC0
Catalog No: 6ES7922-5BF00-0HC0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Current: 1.5 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$216.03

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

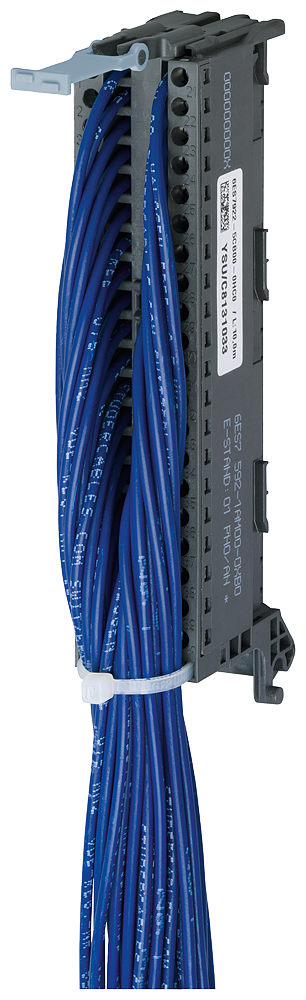

The Siemens 6ES7922-5BF00-0HC0 is a pre-wired 40-pole front connector for SIMATIC S7-1500 digital I/O modules, terminating in 40 individual halogen-free H05Z-K cores of 0.5 mm² over a 5.0 m screw-type wiring harness. It mates with connector 6ES7592-1AM00-0XB0 and is rated 24 V DC (30 V max), 1.5 A maximum with all 40 cores loaded simultaneously.

Technical Specifications

Order Number (MLFB) 6ES7922-5BF00-0HC0
EAN 4025515153351
Brand Siemens
Series SIMATIC S7-1500
Product Designation Front connector with single cores
Mating Connector 6ES7592-1AM00-0XB0
Number of Poles 40
Number of Wired Cores 40
Wire Length 5.0 m
Conductor Cross Section 0.5 mm²
Cable Type H05Z-K
Cable Sheath Material Polyolefin basis, halogen-free
Cable Sheath Color Blue (RAL 5010)
Cable Outer Diameter 2.2 mm
Termination Screw-type terminal
Rated DC Voltage 24 V
Maximum DC Voltage 30 V
Max. Continuous Current (all cores) 1.5 A
Ambient Temperature (operation) 0 ... 60 °C
Ambient Temperature (storage) -15 ... +60 °C
Net Weight 2.1 kg
Country of Origin RO

Selection Notes

The 40-core count sets how many I/O channels of the target S7-1500 module this connector wires in one plug; choose the 40-core version when the module has 40 signal points to terminate, or the other core-count variant otherwise. The halogen-free H05Z-K sheath is the choice for cabinets or panel-building sites with a halogen-free cabling policy; the 5.0 m length reaches modules mounted 5.0 m from the marshalling point without a splice.

Technical Details

Short Description
SIMATIC S7-1500 40-pole front connector, 40 H05Z-K cores, 0.5mm2, 5.0m, 24V DC.
Rated Current (Ampere)
1.5 A
Rated Voltage (VAC)
24 V
Catalog No
6ES7922-5BF00-0HC0
Delivery Date (Days)
10-15 days
Model Number
6ES7922-5BF00-0HC0
Tariff Code
85444290
