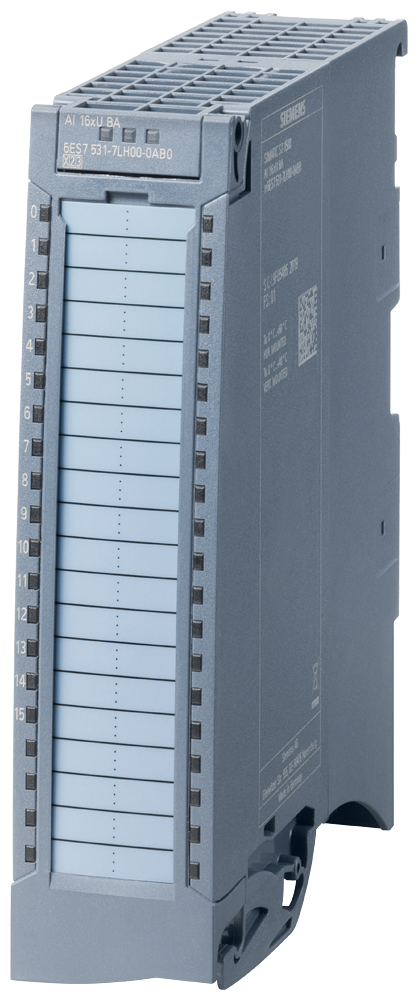

Siemens 6ES7531-7LH00-0AB0 SIMATIC S7-1500 AI 16xU BA 16-Channel Analog PLC I/O Module

The Siemens 6ES7531-7LH00-0AB0 is a SIMATIC S7-1500 analog input module, type AI 16xU BA, with 16 voltage-measurement channels and 16-bit resolution including overrange. It supports the 1V to 5V, -1V to +1V, -5V to +5V, and -10V to +10V ranges with 10 megohm input resistance, and a basic error limit of 0.3 percent at 25 degrees C.

Technical Specifications

Selection Notes

All 16 channels are isolated as a single group rather than individually, which reduces cost but means a common-mode voltage fault affects the whole module rather than one channel; modules with per-channel isolation should be used where that risk is unacceptable. Four selectable voltage ranges from 1V to 5V up to plus/minus 10V cover most process-signal sources without external signal conditioning, and integration times of 2.5, 16.67, 20, or 100 ms are parameterizable to trade speed against interference rejection at 50, 60, or 400 Hz. Wire-break diagnostics are only active on the 1 to 5V range, so that range should be selected when open-circuit detection on the sensor loop is required. Front connectors are ordered separately, with shield bracket and terminal included.

Applications

Reading analog voltage signals from transducers, potentiometers, and process instrumentation into an S7-1500 station, with parameterizable smoothing and integration time for noisy industrial environments.
